uConsole (ClockworkPi) – A Modular Open-Source Handheld

uConsole (ClockworkPi) – A Modular Open-Source Handheld

Overview

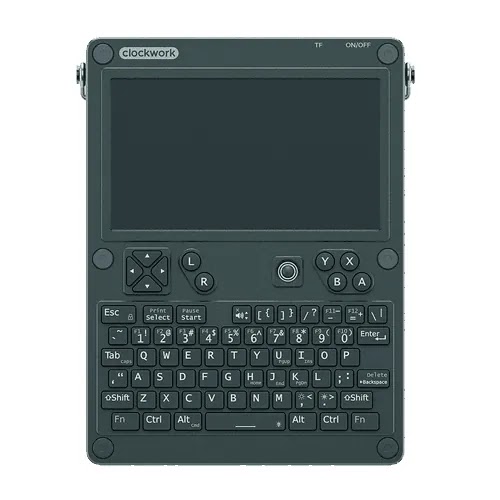

The uConsole from ClockworkPi is a distinctive open-source handheld device that combines a sturdy metal chassis with a modular architecture. It supports interchangeable compute modules (R-01, A-04, RPI-CM4, A-06) and offers optional 4G LTE connectivity. With a 5-inch IPS display, dual 18650 batteries, and a mini trackball, it caters to developers, hobbyists, and retro gaming fans.

Key Specs Highlights

  • Display: 5.0-inch IPS, 1280x720 resolution, 293.72 PPI, 60Hz
  • Battery: Dual 18650 cells (user-replaceable)
  • Connectivity: WiFi 5, Bluetooth 5.0, optional 4G LTE, USB 2.0, 40-pin GPIO
  • Video Output: Micro HDMI
  • Audio: 3.5mm headphone jack
  • Cooling: Passive via metal chassis
  • Storage: Built-in MicroSD slot
  • Input: Mini trackball, keyboard (integrated)
  • Dimensions: 125 x 180 x 20 mm
  • Weight: Not specified

Who It Is For

The uConsole is designed for open-source enthusiasts, developers, and retro gamers who value customization and modularity. It is ideal for those who want a portable device for coding, tinkering with GPIO, or emulating classic consoles like N64, PSP, and Dreamcast (most games playable, though not always at full speed). The optional 4G LTE makes it suitable for on-the-go connectivity projects.

Buying Notes

The uConsole is available in multiple configurations with prices ranging from $139 to $209 depending on the compute module. It was released in June 2023. As an open-source device, it requires some assembly and technical know-how. Availability may vary; check ClockworkPi’s official store or authorized resellers. Note that the device does not include a battery or compute module in some kits, so verify the package contents before purchasing.

Specifications
内存RAM: -
别名Alias: -
名称Name: uConsole
品牌Brand: ClockworkPi
存储Storage: Built-in MicroSD
振动Vibration: -
散热Cooling: Metal chassis heatsink
电池Battery: 18650 x2
重量Weight: -
CPU主频CPU Frequency: -
处理器Processor: -
屏幕PPIScreen PPI: 293.72
扬声器Speaker: -
连接性Connectivity: WiFi 5, Bluetooth 5.0, 4G LTE (optional), one standard USB 2.0 port, two internal USB 2.0 interfaces, 40 Pins GPIOs
价格区间Price Range: $150 - $200
发布时间Release Date: 2023 / 06
外壳材质Chassis Material: Metal
外观尺寸Dimensions: 125 mm x 180 mm x 20 mm
屏幕尺寸Screen Size: 5.0 inches
屏幕比例Screen Ratio: 16:9
屏幕类型Screen Type: IPS
屏幕色域Screen Color Gamut: -
握持类型Grip Type: Vertical
操作系统Operating System: Open-source system
机身颜色Body Color: Silver black
视频输出Video Output: Micro HDMI
起售价格Starting Price: R-01: $139; A-04: $159; RPI-CM4: $189; A-06: $209
音频输出Audio Output: 3.5mm headphone jack
GPU核心频率GPU Core Frequency: -
其他传感器Other Sensors: Mini Trackball
屏幕分辨率Screen Resolution: 1280 x 720
屏幕刷新率Screen Refresh Rate: 60Hz
屏幕最高亮度Screen Max Brightness: -
CPU核心和线程数CPU Cores and Threads: -
模拟器游戏支持Emulator Game Support: N64, PSP and Dreamcast mostly playable, but not all can run at full speed

Full specs and updates on our site: https://www.oldman.dpdns.org/en/handheld/uconsole
