TJD T101 Handheld Gaming PC Review: AMD Zen 4 Power in a 10.1-Inch Form Factor

TJD T101 Handheld Gaming PC Review: AMD Zen 4 Power in a 10.1-Inch Form Factor

Overview

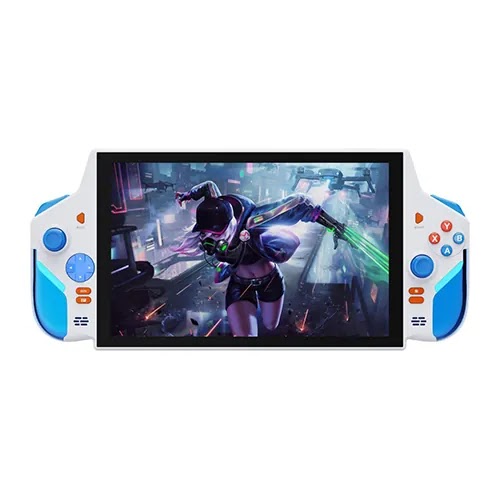

The TJD T101 is a Windows 11 handheld gaming PC designed for gamers who want a large screen and desktop-grade performance on the go. It features AMD's Zen 4 architecture with either a Ryzen 5 7640U (6 cores) or Ryzen 7 7840U (8 cores), paired with Radeon 760M or 780M integrated graphics. The 10.1-inch IPS touchscreen with 1920x1200 resolution provides ample real estate for gaming and productivity.

Key Specs Highlights

  • Processor: AMD Ryzen 5 7640U (3.5-4.9 GHz) or Ryzen 7 7840U (3.3-5.1 GHz)
  • Graphics: AMD Radeon 760M (7640U) or Radeon 780M (7840U)
  • Memory: 16/32/64 GB LPDDR5X
  • Storage: 512 GB to 4 TB M.2 2280 SSD + MicroSD slot
  • Display: 10.1-inch IPS touchscreen, 1920x1200, 60Hz
  • Battery: 60 Wh
  • Weight: 890 grams
  • Connectivity: WiFi 6E, Bluetooth 5.2, USB-A OTG, USB-C video out, 3.5mm audio
  • Sensors: Dual gyroscope, fingerprint reader, Hall effect joysticks and triggers

Who It Is For

The TJD T101 is ideal for PC gamers who want a large-screen handheld capable of running modern titles and emulating consoles up to PS3 and Nintendo Switch (with some exceptions). It also suits users who need a portable Windows device for light productivity, media consumption, or retro gaming.

Buying Notes

Prices vary by configuration: the Ryzen 5 7640U model with 16GB RAM and 1TB storage starts around $599-$799, while the Ryzen 7 7840U with 32GB RAM and 2TB storage ranges from $949-$1099. Higher RAM and storage options are available. The device launched in January 2024. Consider your performance needs and budget when choosing between the 7640U and 7840U variants.

Specifications
CPUAMD Zen 4
GPUAMD Radeon 760M / AMD Radeon 780M
NameTJD T101
BrandTJD
Memory16 / 32 / 64 GB LPDDR5X
Weight890 grams
Battery60 Wh
CoolingDual heat pipe cooling fan
StorageBuilt-in 512 GB - 4 TB M.2 2280 SSD, External MicroSD
SpeakersDual stereo
Grip TypeHorizontal
ProcessorAMD Ryzen 5 7640U / AMD Ryzen 7 7840U
Body ColorWhite, Black, Yellow
Dimensions343 mm x 155 mm x 19.9 - ? mm
Screen PPI224.17
Price Range$400 - $700, $700 - $2000
Screen Size10.1 inches
Screen TypeIPS touchscreen
Audio Output3.5mm headphone jack
ConnectivityWiFi 6E, Bluetooth 5.2, USB-A OTG
Release Date2024 / 01
Screen Ratio16:10
Video OutputUSB-C video output
CPU Frequency3.5 GHz - 4.9 GHz / 3.3 GHz - 5.1 GHz
Other SensorsDual gyroscope, fingerprint recognition, Hall effect joysticks and triggers
Shell MaterialPlastic
Starting Price7640U + 16GB + 1TB: $599 - $799; 7840U + 32GB + 2TB: $949 - $1099
Operating SystemWindows
Screen Resolution1920 x 1200
GPU Core Frequency2.6 GHz / 2.7 GHz
Screen Refresh Rate60Hz
CPU Cores and Threads6 cores 12 threads / 8 cores 16 threads
Emulator Game SupportNGC, Wii, 3DS, PS2, Wii U, Switch, PS3 almost all playable, only a few games may not be smooth

Full specs and updates on our site: https://www.oldman.dpdns.org/en/handheld/tjd-t101
