Tiny GamePi15 (WaveShare) – A Compact DIY Retro Gaming Handheld

Tiny GamePi15 (WaveShare) – A Compact DIY Retro Gaming Handheld

Overview

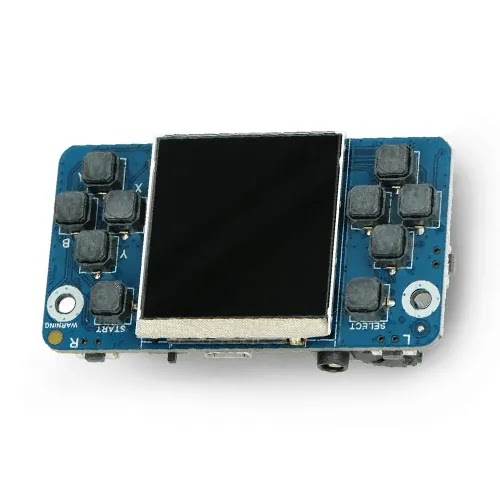

The Tiny GamePi15 is a minimalist, bare-PCB handheld gaming device from WaveShare, designed for tinkerers and retro gaming fans. Launched in May 2019, it runs on open-source software and offers a compact form factor (65 mm x 35 mm x 23 mm) weighing just 60 grams. The device is powered by a Broadcom BCM2835 processor (1.0 GHz single-core ARM1176JZF-S) with VideoCore IV GPU and 512 MB DDR RAM. Storage is via external MicroSD card. Connectivity includes Bluetooth and WiFi, and it features a Mini HDMI output and a 3.5mm headphone jack.

Key Specs Highlights

  • Display: 1.54-inch TFT, 240×240 resolution, 1:1 aspect ratio, 220.4 PPI, 60Hz refresh rate
  • Processor: Broadcom BCM2835 (ARM1176JZF-S, 1.0 GHz, 1 core 1 thread)
  • GPU: Broadcom VideoCore IV at 250 MHz
  • Memory: 512 MB DDR
  • Storage: External MicroSD
  • Battery: 14500 mAh (replaceable)
  • Connectivity: Bluetooth, WiFi
  • Video Output: Mini HDMI
  • Audio: Mono speaker, 3.5mm headphone jack
  • OS: Open-source system
  • Dimensions: 65 mm x 35 mm x 23 mm
  • Weight: 60 grams

Who It Is For

The Tiny GamePi15 is ideal for DIY enthusiasts, hobbyists, and retro gaming fans who enjoy building and customizing their own handheld. It suits those who want a compact, open-source device for playing classic 2D games (SNES, 2D PS1) and are comfortable with a bare-PCB design. Not recommended for users seeking a polished, ready-to-use device or those wanting to play demanding 3D games.

Buying Notes

The Tiny GamePi15 was originally priced around $30 (price range $0–$50). As a niche product, availability may be limited; check specialty retailers or second-hand markets. Note that the device comes as a bare PCB (blue color) and may require assembly or additional accessories. Battery is a 14500 mAh cell (not included? verify). The open-source OS offers flexibility but may need manual setup.

Specifications
CPUARM1176JZF-S
GPUBroadcom VideoCore IV
内存512 MB DDR
名称Tiny GamePi15
品牌WaveShare
存储External MicroSD
电池14500 mAh
重量60 g
CPU主频1.0 GHz
处理器Broadcom BCM2835
屏幕PPI220.4
扬声器Mono
连接性Bluetooth, WiFi
价格区间$0 - $50
发布时间2019 / 05
外壳材质Bare PCB
外观尺寸65 mm x 35 mm x 23 mm
屏幕尺寸1.54 inch
屏幕比例1:1
屏幕类型TFT
握持类型Horizontal
操作系统Open-source system
机身颜色Blue (PCB color)
视频输出Mini HDMI
起售价格$30
音频输出3.5mm headphone jack
GPU核心频率250 MHz
屏幕分辨率240 x 240
屏幕刷新率60Hz
CPU核心和线程数1 core 1 thread
模拟器游戏支持Most SNES at 60 FPS, most 2D PS1 run well (not all at 60 FPS), cannot smoothly run 3D games

Full specs and updates on our site: https://www.oldman.dpdns.org/en/handheld/tiny-gamepi15
