Tapwave Zodiac: A Palm OS Gaming Handheld Ahead of Its Time

Tapwave Zodiac: A Palm OS Gaming Handheld Ahead of Its Time

Overview

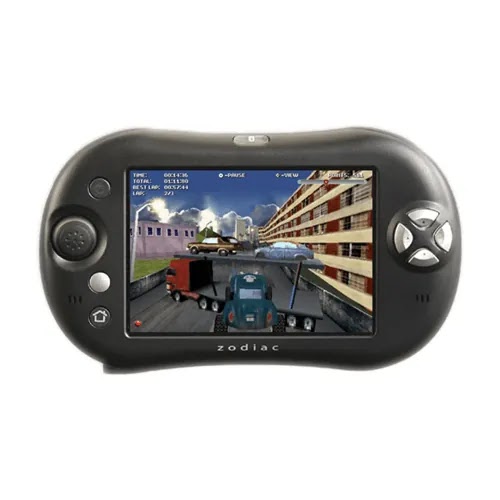

The Tapwave Zodiac, released in 2003, is a unique handheld gaming device that runs on Palm OS. It was designed to bridge the gap between PDAs and dedicated gaming consoles, offering a touchscreen interface and powerful multimedia capabilities for its time. With a 3.8-inch TFT touchscreen display (480x320 resolution) and a 200 MHz Motorola i.MX-1 processor, the Zodiac aimed to provide a premium gaming experience. It came in two models: Zodiac 1 with 32 MB storage and Zodiac 2 with 128 MB storage.

Key Specs Highlights

  • CPU: 200 MHz ARM920T (Motorola i.MX-1)
  • GPU: ATI Imageon W4200
  • Memory: 10 MB SDRAM
  • Storage: 32 MB (Zodiac 1) / 128 MB (Zodiac 2)
  • Display: 3.8-inch TFT touchscreen, 480x320, 151.81 PPI, 60 Hz
  • Battery: 1540 mAh
  • Connectivity: Bluetooth, WiFi
  • Audio: Dual stereo speakers, 3.5mm headphone jack
  • OS: Palm OS
  • Dimensions: 142 x 79 x 14 mm, 180 g
  • Colors: Slate Gray, Charcoal Gray

Who It Is For

The Tapwave Zodiac is for retro gaming enthusiasts and collectors interested in early 2000s handhelds. It runs Palm OS, making it suitable for classic PDA tasks and emulation of NES, Game Boy Advance, and Sega Master System games. However, SNES emulation is often not smooth. It appeals to those who appreciate unique hardware and the history of mobile gaming.

Buying Notes

As a discontinued device from 2003, the Tapwave Zodiac is only available on the secondhand market. Prices vary widely based on condition and model (Zodiac 2 with more storage is rarer). Ensure the battery holds a charge and the touchscreen is responsive. Due to its age, replacement parts may be hard to find. It's a niche collectible rather than a daily driver.

Specifications
CPUARM920T
GPUATI Imageon W4200
NameTapwave Zodiac
BrandTapwave
Memory10 MB SDRAM
Weight180 g
Battery1540 mAh
Storage32 MB (Zodiac 1) / 128 MB (Zodiac 2)
SpeakersDual stereo
Grip TypeHorizontal
ProcessorMotorola i.MX-1
Body ColorSlate Gray, Charcoal Gray
Dimensions142 mm × 79 mm × 14 mm
Screen PPI151.81
Screen Size3.8 inches
Screen TypeTFT touchscreen
Audio Output3.5mm headphone jack
ConnectivityBluetooth, WiFi
Release Date2003
Screen Ratio3:2
CPU Frequency200 MHz
Shell MaterialPlastic
Operating SystemPalm OS
Screen Resolution480 x 320
Screen Refresh Rate60Hz
CPU Cores and Threads1 core 1 thread
Emulator Game SupportNES, GBA, SMS run well; SNES playable but often not smooth

Full specs and updates on our site: https://www.oldman.dpdns.org/en/handheld/tapwave-zodiac
