Retroflag GPi Case Review: A Classic Game Boy-Inspired Retro Handheld

Retroflag GPi Case Review: A Classic Game Boy-Inspired Retro Handheld

Overview

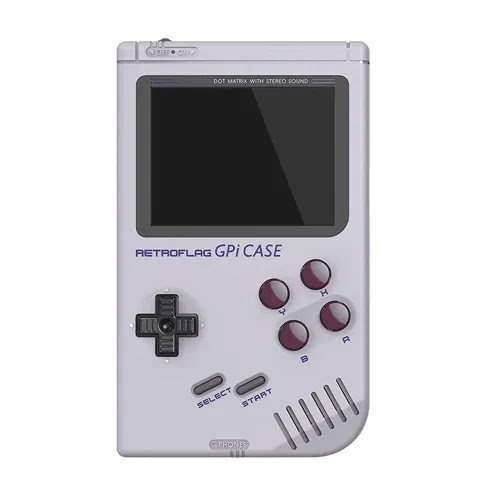

The Retroflag GPi Case is a handheld gaming shell designed to house a Raspberry Pi Zero (or Zero W). It mimics the classic Game Boy DMG-01 design, complete with a D-pad, A/B/X/Y buttons, and a 2.8-inch IPS display. Powered by the Broadcom BCM2835 processor (1 GHz single-core ARM1176JZF-S CPU and VideoCore IV GPU), it runs RetroPie, a popular emulation OS. The device uses 3 AA batteries for power and connects via Bluetooth and WiFi.

Key Specs Highlights

  • CPU: Broadcom BCM2835 (ARM1176JZF-S, 1.0 GHz, 1 core/1 thread)
  • GPU: Broadcom VideoCore IV @ 250 MHz
  • RAM: 512 MB DDR
  • Display: 2.8-inch IPS, 320x240 resolution, 4:3 aspect ratio, 60 Hz refresh rate, 142.86 PPI
  • Storage: External MicroSD card
  • Connectivity: Bluetooth, WiFi
  • Audio: Mono speaker, 3.5mm headphone jack
  • Battery: 3x AA batteries
  • Dimensions: 135 x 81 x 32 mm, 280 g
  • Material: Plastic, DMG Gray color
  • OS: RetroPie
  • Price: $70 launch, typically $75–$100
  • Release: June 2019

Who It Is For

The GPi Case is ideal for retro gaming enthusiasts who enjoy DIY projects. It requires a Raspberry Pi Zero board (not included) and some setup. It's perfect for playing 2D games from systems like SNES (most run at 60 FPS) and 2D PS1 games (most run well, though not always at full speed). 3D games may struggle. It's not for those seeking a plug-and-play experience or high-end emulation.

Buying Notes

Prices range from $70 to $100, but you'll need to supply a Raspberry Pi Zero and a MicroSD card. The case is well-built and nostalgic, but battery life depends on AA quality. Consider the form factor: vertical grip similar to the original Game Boy. Check for compatibility with your Pi model (Zero or Zero W).

Specifications
CPUARM1176JZF-S
GPUBroadcom VideoCore IV
RAM512 MB DDR
NameGPi Case
BrandRetroflag
Weight280 g
Battery3x AA batteries
SpeakerMono
StorageExternal MicroSD
Grip TypeVertical
ProcessorBroadcom BCM2835
Body ColorDMG Gray
Dimensions135 mm x 81 mm x 32 mm
Screen PPI142.86
Price Range$75 - $100
Screen Size2.8 inches
Screen TypeIPS
Audio Output3.5mm headphone jack
ConnectivityBluetooth, WiFi
Launch Price$70
Release Date2019 / 06
Screen Ratio4:3
CPU Frequency1.0 GHz
Shell MaterialPlastic
Operating SystemRetroPie
Screen Resolution320 x 240
GPU Core Frequency250 MHz
Screen Refresh Rate60Hz
CPU Cores and Threads1 core 1 thread
Emulator Game SupportMost SNES runs at 60 FPS, most 2D PS1 runs well (not all at 60 FPS), but cannot smoothly play 3D games

Full specs and updates on our site: https://www.oldman.dpdns.org/en/handheld/gpi-case
