Retroflag GPi Case 2 Review: A Classic Handheld for Retro Gaming Enthusiasts

Retroflag GPi Case 2 Review: A Classic Handheld for Retro Gaming Enthusiasts

Overview

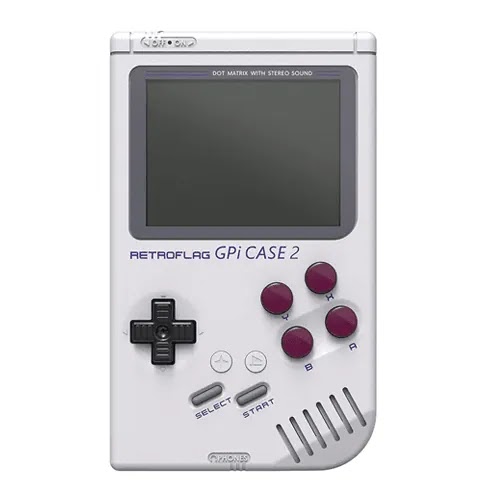

The Retroflag GPi Case 2 is a handheld gaming device that pays homage to the classic Game Boy design while packing modern hardware inside. It is essentially a shell and case that houses a Raspberry Pi Compute Module 4 (CM4), turning it into a portable retro gaming powerhouse. The device features a 3-inch IPS display with a 4:3 aspect ratio and 640x480 resolution, providing crisp visuals for classic games. It runs on open-source software and offers connectivity options like WiFi and Bluetooth.

Key Specs Highlights

  • Processor: Broadcom BCM2711 (Cortex-A72, 1.5 GHz, 4 cores)
  • GPU: Broadcom VideoCore VI (500 MHz)
  • RAM: 1/2/4/8 GB (depending on CM4 module)
  • Storage: MicroSD card (built-in)
  • Display: 3.0-inch IPS, 640x480, 60Hz, 4:3 ratio
  • Battery: 4000 mAh
  • Connectivity: WiFi, Bluetooth, USB-C video output (via dock), 3.5mm headphone jack
  • Weight: 224 grams
  • Dimensions: 135 x 81 x 32 mm
  • Price: $75 - $100 (without CM4: $80, base dock: $90)

Who It Is For

The GPi Case 2 is ideal for retro gaming enthusiasts who enjoy tinkering with Raspberry Pi projects. It is perfect for those who want a portable device to play classic games from systems like NES, SNES, Sega Genesis, and even some N64, PSP, and Dreamcast titles (though not all run at full speed). It also appeals to collectors who appreciate the nostalgic Game Boy aesthetic.

Buying Notes

Note that the GPi Case 2 is sold as a shell and requires a separate Raspberry Pi Compute Module 4 (CM4) to function. The base price of $80 does not include the CM4, and the optional dock adds $90. The device supports USB-C video output only through the dedicated dock. Performance varies depending on the CM4 model (RAM size) and cooling; some users may need to add heatsinks or fans for demanding games. The speaker is mono, and the build quality is plastic but sturdy.

Specifications
CPUCortex-A72
GPUBroadcom VideoCore VI
RAM1 / 2 / 4 / 8 GB
NameGPi Case 2
BrandRetroflag
Weight224 grams
Battery4000 mAh
SpeakerMono
StorageBuilt-in MicroSD
Grip TypeVertical
ProcessorBroadcom BCM2711
Body ColorDMG Gray
Dimensions135 mm x 81 mm x 32 mm
Screen PPI266.67
Price Range$75 - $100
Screen Size3.0 inches
Screen TypeIPS
Audio Output3.5mm Headphone Jack
ConnectivityWiFi, Bluetooth
Launch Price$80 (without Pi CM4), $90 (dock)
Release Date2021 / 12
Screen Ratio4:3
Video OutputUSB-C Video Output (via dedicated dock)
CPU Frequency1.5 GHz
Shell MaterialPlastic
Operating SystemOpen Source
Screen Resolution640 x 480
GPU Core Frequency500 MHz
Screen Refresh Rate60Hz
CPU Cores and Threads4 cores 4 threads
Emulator Game SupportN64, PSP and Dreamcast mostly playable (not all full speed)

Full specs and updates on our site: https://www.oldman.dpdns.org/en/handheld/gpi-case-2
