Retro CM3 (KinHanK) Review: A Compact Retro Gaming Handheld

Retro CM3 (KinHanK) Review: A Compact Retro Gaming Handheld

Overview

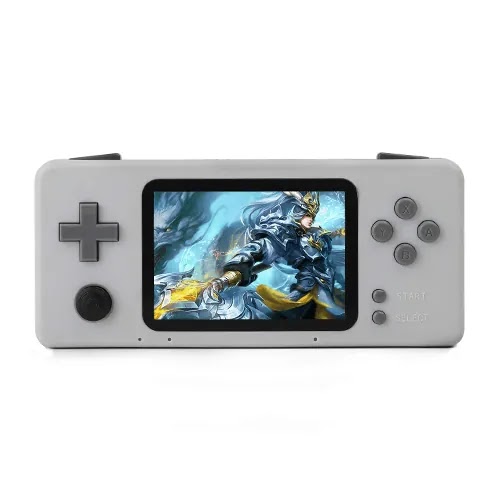

The Retro CM3, developed by KinHanK, is a horizontal handheld gaming device designed for retro gaming enthusiasts. It runs on an open-source operating system and is powered by the Broadcom BCM2837 system-on-chip, featuring a 1.2 GHz quad-core Cortex-A53 CPU and a Broadcom VideoCore IV GPU clocked at 250 MHz. With 1 GB of DDR2 RAM and external MicroSD storage, it offers a compact and affordable solution for emulating classic games.

Key Specs Highlights

  • Display: 3.2-inch IPS, 480x320 resolution, 3:2 aspect ratio, 60 Hz refresh rate, ~180 PPI
  • Processor: Broadcom BCM2837 (Cortex-A53, 1.2 GHz, 4 cores/4 threads)
  • GPU: Broadcom VideoCore IV at 250 MHz
  • Memory & Storage: 1 GB DDR2 RAM, external MicroSD card
  • Battery: 3700 mAh
  • Connectivity: WiFi, AV output (composite), 3.5 mm headphone jack
  • Dimensions: 150 x 68 x 21 mm, 150 grams
  • Build: Plastic shell, available in gray, black-blue, black-red, and transparent
  • Cooling: Heatsink and ventilation cutouts
  • Audio: Mono speaker

Who It Is For

The Retro CM3 is ideal for retro gaming fans who want a dedicated device for playing classic titles from the SNES, Sega Genesis, and PlayStation 1 eras. It can handle SNES FX and 3D PS1 games at 60 FPS, while N64 and NDS games are playable but may not run smoothly. It suits tinkerers who appreciate open-source systems and don't mind the lack of analog sticks or advanced features.

Buying Notes

Priced between $100 and $150 (launch price $150), the Retro CM3 offers good value for its performance. However, note that it lacks Bluetooth, vibration, and internal storage beyond the MicroSD slot. The 3.2-inch screen is small but sharp for its resolution. Availability may be limited as it was released in July 2019; check second-hand markets or specialty retro gaming stores.

Specifications
CPUCortex-A53
GPUBroadcom VideoCore IV
NameRetro CM3
BrandKinHanK
Memory1 GB DDR2
Weight150 g
Battery3700 mAh
CoolingHeatsink, ventilation cutouts
SpeakerMono
StorageExternal MicroSD
Grip TypeHorizontal
ProcessorBroadcom BCM2837
Dimensions150 mm x 68 mm x 21 mm
Screen PPI180.28
Body ColorsGray, Black-Blue, Black-Red, Transparent
Price Range$100 - $150
Screen Size3.2 inches
Screen TypeIPS
Audio Output3.5 mm headphone jack
ConnectivityWiFi
Launch Price$150
Release Date2019 / 07
Screen Ratio3:2
Video OutputAV port
CPU Frequency1.2 GHz
Shell MaterialPlastic
Operating SystemOpen Source
Screen Resolution480 x 320
GPU Core Frequency250 MHz
Screen Refresh Rate60 Hz
CPU Cores and Threads4 cores, 4 threads
Emulator Game SupportSNES FX and 3D PS1 (60 FPS), N64 and NDS (playable, but not smooth)

Full specs and updates on our site: https://www.oldman.dpdns.org/en/handheld/retro-cm3
