QRD Vortex F5 Review: Budget Retro Handheld with RockChip RK3566

QRD Vortex F5 Review: Budget Retro Handheld with RockChip RK3566

Overview

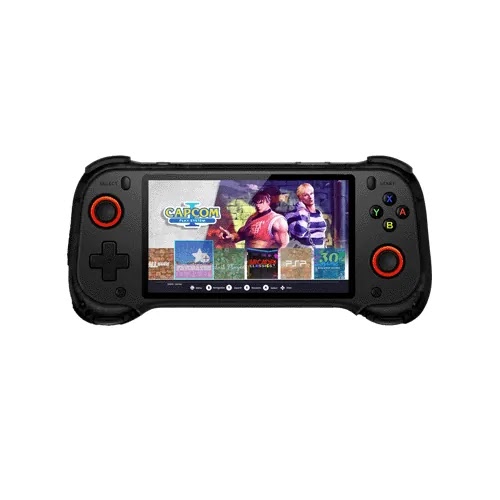

The QRD Vortex F5 is a budget-friendly retro gaming handheld designed for enthusiasts who want a dedicated device for classic gaming. It features a RockChip RK3566 quad-core processor with Cortex-A55 cores clocked at 1.8 GHz, paired with a Mali-G52 2EE GPU. The device runs on an open-source operating system, offering flexibility for customization.

Key Specs Highlights

  • Processor: RockChip RK3566 (4x Cortex-A55 @ 1.8 GHz)
  • GPU: Mali-G52 2EE @ 850 MHz
  • Memory: 1 GB LPDDR4X
  • Storage: 8 GB eMMC + MicroSD expansion
  • Display: 5.5-inch IPS, 1280x720, 60Hz, 267 PPI, 16:9
  • Battery: 5000 mAh
  • Connectivity: USB-C (with video output), 3.5mm headphone jack
  • Controls: Hall effect joysticks
  • Weight: 330 grams
  • Dimensions: 223 x 103 x 35 mm

Who It Is For

The QRD Vortex F5 is ideal for retro gaming fans on a tight budget who want to play titles from N64, PSP, and Dreamcast era. Its open-source OS appeals to tinkerers, while the large battery and plastic build make it a practical choice for portable gaming.

Buying Notes

Priced around $90 (approximately ¥653), the Vortex F5 offers good value for its performance tier. However, note the limited 1GB RAM and 8GB internal storage, which may require a MicroSD card for larger game libraries. The device lacks vibration feedback and has a single speaker. It was released in February 2025.

Specifications
CPUCortex-A55
GPUMali-G52 2EE
NameQRD Vortex F5
BrandQRD
Memory1 GB LPDDR4X
Weight330 grams
Battery5000 mAh
CoolingVent
SpeakerSingle speaker
StorageInternal 8 GB eMMC, External MicroSD
Grip TypeHorizontal
ProcessorRockChip RK3566
VibrationNone
Body ColorBlack
Dimensions223 mm x 103 mm x 35 mm
Screen PPI267
Price Range¥500 - ¥1000
Screen Size5.5 inches
Screen TypeIPS
Audio Output3.5mm headphone jack
ConnectivityUSB-C
Launch Price$90 (approximately ¥653)
Release Date2025 / 02
Screen Ratio16:9
Video OutputUSB-C video output
CPU Frequency1.8 GHz
Other SensorsHall effect joysticks
Shell MaterialPlastic
Operating SystemOpen-source OS
Screen Resolution1280 x 720
GPU Core Frequency850 MHz
Screen Refresh Rate60Hz
CPU Cores and Threads4 cores 4 threads
Emulator Game SupportUp to N64, PSP, and Dreamcast

Full specs and updates on our site: https://www.oldman.dpdns.org/en/handheld/qrd-vortex-f5
