PicoSystem by Pimoroni: A Compact DIY Handheld Gaming Device

PicoSystem by Pimoroni: A Compact DIY Handheld Gaming Device

Overview

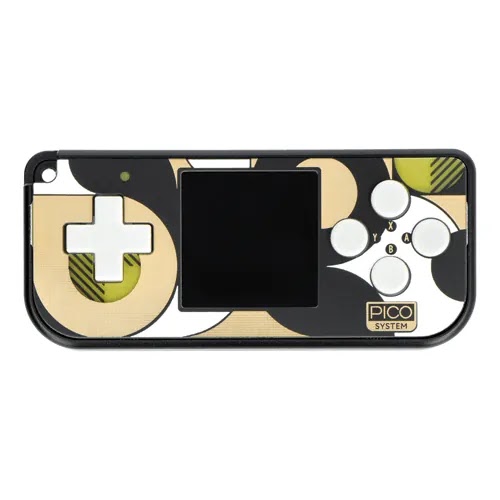

The PicoSystem is a compact, open-source handheld gaming console developed by Pimoroni. It is built around the Raspberry Pi RP2040 microcontroller, making it highly programmable and ideal for hobbyists who want to create their own games or experiment with embedded systems. The device features a 1.54-inch IPS display with a 1:1 aspect ratio and 240x240 resolution, offering a crisp 220.4 PPI. Its black plastic shell houses a simple but functional layout with a directional pad and action buttons, all in a landscape orientation. The PicoSystem was released in October 2021 with a starting price of $79.90.

Key Specs Highlights

  • Display: 1.54-inch IPS, 240x240 resolution, 60Hz refresh rate, 220.4 PPI
  • Processor: Raspberry Pi RP2040 (dual-core Cortex-M0+)
  • Memory & Storage: 264KB SRAM, 2MB Flash (onboard)
  • Connectivity: USB-C for power and data, no wireless
  • Battery: 1200mAh LiPo (estimated 2-4 hours playtime)
  • Dimensions: 100mm x 40mm x 15mm (approx.)
  • Weight: ~50g

Who It Is For

The PicoSystem is aimed at makers, developers, and retro gaming enthusiasts who enjoy tinkering with hardware and writing code. It is not a ready-to-play console for casual gamers; instead, it requires programming knowledge to create or load games. It's perfect for learning embedded development, Python (via MicroPython), or C++ on a dedicated gaming device.

Buying Notes

As of now, the PicoSystem is available directly from Pimoroni and select retailers. The price is $79.90 (excluding taxes and shipping). Keep in mind that it does not come with pre-installed games; you'll need to write or download your own. The device is also compatible with the PicoSystem SDK and community-created games. Check for bundle deals that may include a microSD card or additional accessories.

Specifications
NamePicoSystem
BrandPimoroni
Grip TypeHorizontal
Body ColorBlack
Screen PPI220.4
Screen Size1.54 inches
Release Date2021 / 10
Screen Ratio1:1
Shell MaterialPlastic
Starting Price$79.90
Screen Resolution240 x 240
Screen Refresh Rate60Hz

Full specs and updates on our site: https://www.oldman.dpdns.org/en/handheld/picosystem
