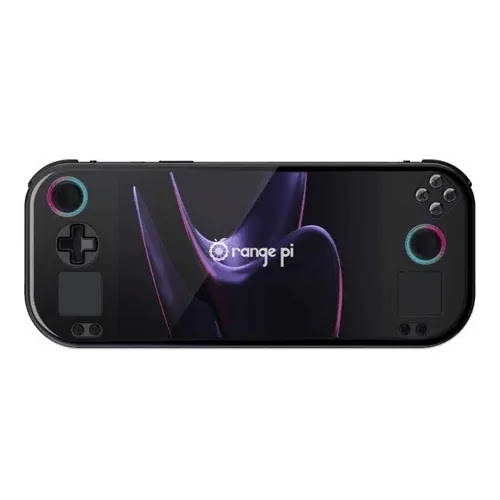

OrangePi Neo-X86 Handheld Gaming Device

OrangePi Neo-X86 Handheld Gaming Device

Overview

The OrangePi Neo-X86 is a forthcoming handheld gaming device from Orange Pi, built around AMD's latest Zen 4 architecture. It offers a choice between the Ryzen 7 8840U or 7840U processors, paired with the powerful Radeon 780M integrated graphics. This combination delivers exceptional performance for both modern PC games and demanding emulators, supporting systems like GameCube, Wii, 3DS, PS2, Wii U, and even Switch.

Key Specs Highlights

  • Processor: AMD Ryzen 7 8840U / 7840U (8 cores, 16 threads, up to 5.1 GHz)
  • GPU: AMD Radeon 780M (2.7 GHz)
  • Memory: 16 GB or 32 GB LPDDR5 (6400 MT/s)
  • Storage: 512 GB – 2 TB M.2 2280 SSD + MicroSD expansion
  • Display: 7.0-inch IPS touchscreen, 1920x1200 resolution, 60Hz, 16:10 aspect ratio
  • Battery: 50 Wh
  • Connectivity: WiFi 6E, Bluetooth 5.3, USB-C video output, 3.5mm audio jack
  • Sensors: Gyroscope, Hall effect triggers and joysticks
  • Cooling: Active fan with exhaust vents
  • OS: Open-source system

Who It Is For

The OrangePi Neo-X86 is ideal for retro gaming enthusiasts and emulation fans who want a portable device capable of running demanding systems like PS2, Wii U, and Switch. It also appeals to tinkerers and open-source advocates who prefer a customizable Linux-based handheld. With its high-performance specs, it can handle many modern PC games at playable settings.

Buying Notes

As of now, the OrangePi Neo-X86 has not been officially released, and no pricing or exact launch date has been announced. Keep an eye on Orange Pi's official channels for updates. Given the specs, it is expected to be competitively priced within the high-end handheld market. Consider your need for 32 GB RAM versus 16 GB, and storage options ranging from 512 GB to 2 TB.

Specifications
CPUAMD Zen 4
GPUAMD Radeon 780M
内存16 GB / 32 GB LPDDR5 (6400 MT/s)
名称OrangePi Neo-X86
品牌Orange Pi
存储Built-in 512 GB - 2 TB M.2 2280 SSD, external MicroSD
振动Yes
散热Active cooling fan, exhaust vents
电池50 Wh
CPU主频3.3 GHz - 5.1 GHz
处理器AMD Ryzen 7 8840U / AMD Ryzen 7 7840U
屏幕PPI323.45
扬声器Dual stereo speakers
连接性WiFi 6E, Bluetooth 5.3
发布时间Not officially released
外壳材质Plastic
外观尺寸259 mm x 107 mm x 19.9 mm
屏幕尺寸7.0 inches
屏幕比例16:10
屏幕类型IPS touchscreen
握持类型Horizontal
操作系统Open-source OS
机身颜色Black, White
视频输出USB-C video output
音频输出3.5mm headphone jack
GPU核心频率2.7 GHz
其他传感器Gyroscope, Hall effect triggers + joysticks
屏幕分辨率1920 x 1200
屏幕刷新率60Hz
CPU核心和线程数8 cores, 16 threads
模拟器游戏支持Gamecube & Wii & 3DS & PS2 & Wii U & Switch

Full specs and updates on our site: https://www.oldman.dpdns.org/en/handheld/orangepi-neo-x86
