Nintendo Switch (Original LCD Model) Review & Specs

Nintendo Switch (Original LCD Model) Review & Specs

Overview

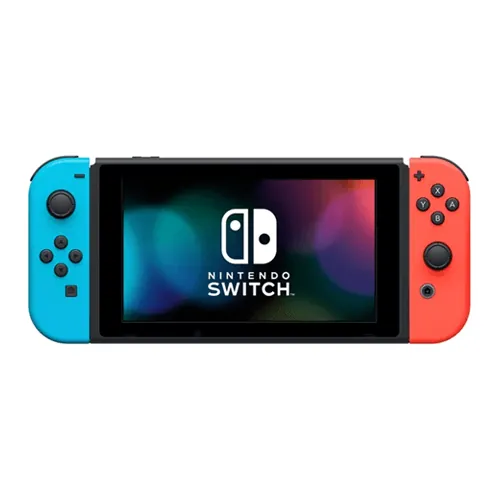

The Nintendo Switch is a groundbreaking hybrid console that seamlessly transitions between handheld and docked TV gaming. Launched in March 2017, the original model (often called 'Switch V1' or 'LCD Switch') features a 6.2-inch 1280×720 IPS multi-touch display, detachable Joy-Con controllers with motion controls and HD rumble, and a custom Nvidia Tegra X1 processor. It supports both physical game cards and digital downloads, with 32GB internal storage expandable via microSD. The console runs Nintendo's own system software and offers access to the full Switch game library, plus retro games through Nintendo Switch Online.

Key Specs Highlights

  • Processor: Nvidia Tegra X1/X1+ (8-core Cortex-A57/A53 CPU + GM20B GPU)
  • Display: 6.2-inch IPS LCD, 1280×720 resolution, 60Hz refresh rate, 236.87 PPI
  • RAM: 4GB LPDDR4
  • Storage: 32GB eMMC + microSD card slot
  • Battery: 4310 mAh (15.95 Wh), up to ~9 hours (varies by game)
  • Weight: 297g (tablet only), 398g (with Joy-Con attached)
  • Dimensions: 173×102×14 mm (tablet), 238×102×14-28.5 mm (with Joy-Con)
  • Connectivity: Wi-Fi 5, Bluetooth 4.1, NFC, USB-C (charging and video out)
  • Audio: Stereo speakers, 3.5mm headphone jack
  • Launch Price: $299.99 USD / ¥29,980 JPY / £279.99 GBP / €329.99 EUR

Who It Is For

The original Nintendo Switch is ideal for gamers who want the flexibility of playing on a TV or on the go. It's perfect for fans of Nintendo's first-party titles like The Legend of Zelda: Breath of the Wild, Super Mario Odyssey, and Animal Crossing: New Horizons. The detachable Joy-Cons enable local multiplayer anywhere, and the extensive library includes indie games, third-party ports, and retro classics via Nintendo Switch Online. However, this model has a shorter battery life than the 2019 revision and lacks the OLED screen of the later model.

Buying Notes

As of 2025, the original Switch is discontinued but widely available used or refurbished. If buying new, consider the Switch OLED or Switch Lite instead. Check for screen scratches, Joy-Con drift issues, and battery health when purchasing second-hand. The console is region-free for games, but DLC and eShop credit may be region-locked. The included dock supports 1080p output to TV. For the best handheld experience, the OLED model offers a superior screen and longer battery life.

Specifications
CPUCortex-A57 / Cortex-A53
GPUNvidia GM20B
内存4 GB LPDDR4
别名Switch first-gen, Switch LCD model, Switch launch model
名称Switch
品牌Nintendo
存储32 GB eMMC internal & microSD external
振动Yes (HD Rumble, controller-dependent)
散热Active cooling fan
电池4310 mAh (15.95 Wh)
重量297 g, 398 g (with Joy-Con attached)
CPU主频1.02 GHz - 1.785 GHz
处理器Nvidia Tegra X1 / X1+
屏幕PPI236.87
扬声器Dual stereo
连接性Wi-Fi 5, Bluetooth 4.1, NFC
发布时间2017 / 03
外壳材质Plastic
外观尺寸173 mm x 102 mm x 14 mm / 238 mm x 102 mm x 14 - 28.5 mm (with Joy-Con attached)
屏幕尺寸6.2 inches
屏幕比例16:9
屏幕类型IPS touchscreen
握持类型Horizontal
操作系统Nintendo Switch System Software
机身颜色Black, Gray, Blue, Red, other limited colors
视频输出USB-C video output (via dock or adapter)
起售价格US$299.99; ¥29,980; £279.99; €329.99
音频输出3.5 mm headphone jack
GPU核心频率307.2 - 768 MHz
其他传感器Dual IR cameras, ambient light sensor, dual accelerometers, dual gyroscopes
屏幕分辨率1280 × 720
屏幕刷新率60Hz
CPU核心和线程数8 cores, 8 threads
模拟器游戏支持Switch games; GBA games with Nintendo Switch Online membership

Full specs and updates on our site: https://www.oldman.dpdns.org/en/handheld/nintendo-switch
