Nintendo Switch OLED Review: Specs, Features, and Buying Guide

Nintendo Switch OLED Review: Specs, Features, and Buying Guide

Overview

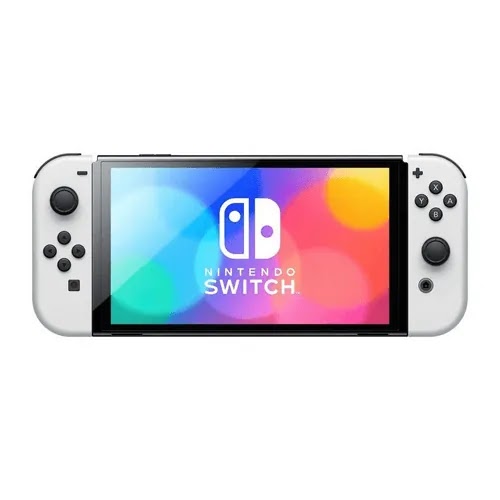

The Nintendo Switch OLED (model HEG-001) is a mid-generation refresh of the popular hybrid console, released in October 2021. It retains the core functionality of the original Switch but upgrades the screen to a 7-inch OLED panel with vibrant colors and deeper blacks. The device also features a wider adjustable kickstand, enhanced stereo speakers, and 64GB of internal storage (double the original). It is compatible with all existing Switch games and accessories.

Key Specs Highlights

  • Processor: Nvidia Tegra X1+ (Cortex-A57 + Cortex-A53, 1.02-1.785 GHz)
  • GPU: Nvidia GM20B (307.2-768 MHz)
  • Memory: 4 GB LPDDR4
  • Storage: 64 GB eMMC + MicroSD expansion
  • Display: 7.0-inch OLED, 1280×720, 60Hz, touchscreen
  • Battery: 4310 mAh
  • Weight: 322 g (tablet only) / 422 g (with Joy-Con)
  • Connectivity: Wi-Fi 5, Bluetooth 4.1, NFC
  • Video Output: USB-C (via dock or third-party adapter)
  • Audio: 3.5mm headphone jack, stereo speakers
  • Sensors: Dual IR cameras, ambient light sensor, dual accelerometers, dual gyroscopes

Who It Is For

The Switch OLED is perfect for gamers who primarily play in handheld mode and want a superior screen experience. It is also a great choice for new buyers who want the latest model with more storage and a better kickstand. Existing Switch owners may upgrade if they value the OLED display and improved audio.

Buying Notes

The Switch OLED is widely available at retailers. It does not include a price increase over the original Switch at launch, but prices may vary. Note that performance is identical to the original Switch (2019 revision) – the OLED model does not support 4K output or have upgraded internals. The device uses active cooling with a fan. It is available in black (white Joy-Con option).

Specifications
CPUCortex-A57 + Cortex-A53
GPUNvidia GM20B
NameSwitch OLED
AliasNS OLED
BrandNintendo
Memory4 GB LPDDR4
Weight322 g / 422 g
Battery4310 mAh
CoolingActive cooling fan
Storage64 GB eMMC internal & MicroSD external
SpeakersDual stereo
Grip TypeHorizontal
ProcessorNvidia Tegra X1+
VibrationYes, requires Joy-Con
Body ColorBlack
Dimensions173 mm x 102 mm x 14 - 28.5 mm
Screen PPI209.8
Price Range¥1500 - ¥2000
Screen Size7.0 inches
Screen TypeOLED touchscreen
Audio Output3.5mm headphone jack
ConnectivityWi-Fi 5, Bluetooth 4.1, NFC
Release Date2021/10
Screen Ratio16:9
Video OutputUSB-C video output (via dock mode or docking station)
CPU Frequency1.02 GHz - 1.785 GHz
Other SensorsDual IR cameras, ambient light sensor, dual accelerometers, dual gyroscopes
Shell MaterialPlastic
Operating SystemProprietary system
Screen Resolution1280 × 720
GPU Core Frequency307.2 - 768 MHz
Screen Refresh Rate60Hz
CPU Cores and Threads8 cores 8 threads

Full specs and updates on our site: https://www.oldman.dpdns.org/en/handheld/nintendo-switch-oled
