Nintendo New 3DS XL Review: Specs, Features, and Buying Guide

Nintendo New 3DS XL Review: Specs, Features, and Buying Guide

Overview

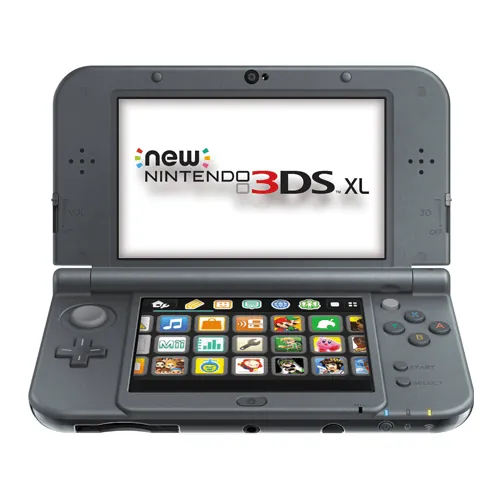

The Nintendo New 3DS XL (also known as "New 3DS LL" in Japan) is a mid-generation refresh of the original 3DS XL, released in February 2015. It features a more powerful quad-core ARM11 processor, additional shoulder buttons (ZL/ZR), a C-Stick nub, and improved face-tracking 3D technology. The clamshell design houses two screens: a 4.88-inch upper display and a 4.18-inch lower touchscreen. It is compatible with all Nintendo DS and 3DS games, with some titles requiring the New 3DS hardware for enhanced features.

Key Specs Highlights

  • CPU: Quad-core ARM11 @ 804 MHz + ARM9 @ 134 MHz
  • GPU: Digital Media Professionals PICA200 @ 268 MHz
  • Memory: 256 MB FCRAM
  • Storage: 1 GB internal + MicroSD (up to 32 GB officially, larger with formatting)
  • Displays: Upper: 4.88" TN/IPS LCD (800x240, 171.2 PPI); Lower: 4.18" TN/IPS LCD touchscreen (320x240, 95.7 PPI)
  • Battery: 1750 mAh (3-6 hours depending on usage)
  • Connectivity: 802.11b/g Wi-Fi, IR, NFC (for amiibo)
  • Sensors: Accelerometer, gyroscope, front and dual rear cameras, microphone
  • Weight: 329 grams
  • Dimensions: 160 x 93.5 x 21.5 mm
  • Launch Price: ¥18,900 (Japan), $199.99 (US), €199.99 (Europe)

Who It Is For

The New 3DS XL is ideal for retro gaming enthusiasts, Nintendo fans, and collectors who want access to the extensive DS and 3DS library. It's also great for those who prefer a larger screen and improved ergonomics over the standard New 3DS. The enhanced processing power allows for better performance in select games and emulation of older systems (up to some N64 titles). However, it is not suitable for modern AAA gaming or high-end emulation.

Buying Notes

When purchasing a New 3DS XL, consider the condition (new or used), region (games are region-locked), and included accessories (charger, stylus, etc.). The device uses a proprietary charger (not included in all regions). Be aware that the Nintendo eShop for 3DS has been shut down, so digital games can no longer be purchased officially. Physical cartridges are still widely available. The New 3DS XL is a durable handheld, but check for screen scratches, hinge wear, and battery health on used units. Prices vary; expect to pay around $150-$250 depending on condition and rarity.

Specifications
CPUARM11, ARM9
GPUDigital Media Professionals PICA200
NameNew 3DS XL
AliasNew 3DS LL
BrandNintendo
Memory256 MB FCRAM
Weight329 grams
Battery1750 mAh
SpeakerSingle speaker
Storage1 GB internal & external MicroSD
ProcessorCPU LGR A
Dimensions160 mm x 93.5 mm x 21.5 mm
Screen PPI171.2 (top) 95.7 (bottom)
Body ColorsBlack, Red, Blue, White, Pink, Orange
Form FactorClamshell / Foldable
Screen Size4.88 inches (top) 4.18 inches (bottom)
Screen TypeTN/IPS LCD (top) TN/IPS LCD touchscreen (bottom)
Audio Output3.5mm headphone jack
Connectivity802.11b/g WiFi, IR radio, NFC
Launch Price¥18,900; US$199.99; A$249.99; C$239.99; €199.99; £179.99
Release Date2015 / 02
CPU Frequency804 MHz (ARM11) 134 MHz (ARM9)
Other SensorsAccelerometer, gyroscope, front and dual rear cameras, microphone
Shell MaterialPlastic
Operating SystemNintendo 3DS System Software
Screen Resolution800 x 240 (top) 320 x 240 (bottom)
GPU Core Frequency268 MHz
Screen Aspect Ratio10:3 (top) 4:3 (bottom)
Screen Refresh Rate60Hz
CPU Cores and ThreadsQuad Core (ARM11) Single Core (ARM9)
Emulator Game SupportEmulation up to some N64 and earlier games

Full specs and updates on our site: https://www.oldman.dpdns.org/en/handheld/nintendo-new-3ds-xl
