Nintendo DS (Original Model) - The Dual-Screen Revolution

Nintendo DS (Original Model) - The Dual-Screen Revolution

Overview

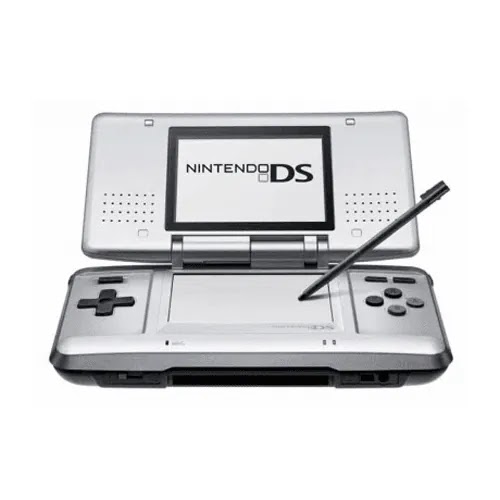

The Nintendo DS (NDS) is the first model in Nintendo's dual-screen handheld family, released in November 2004. Its clamshell design features two 3.0-inch TN LCD screens, with the lower one being a touchscreen. Powered by a custom SoC with ARM946E-S and ARM7TDMI cores, it introduced innovative gameplay with a stylus and microphone. The DS is backward compatible with Game Boy Advance cartridges and supports 802.11 WiFi for local multiplayer.

Key Specs Highlights

  • Dual Screens: Two 3.0-inch 4:3 TN LCDs (256×192 resolution, 60Hz), lower touchscreen
  • Processor: ARM946E-S @ 67 MHz + ARM7TDMI @ 33.5 MHz
  • Memory & Storage: 4 MB SRAM, 256 KB internal storage
  • Battery: 850 mAh rechargeable
  • Connectivity: 802.11b WiFi, 3.5mm headphone jack
  • Dimensions: 148.7 x 84.7 x 28.9 mm, 275 grams
  • Launch Price: $149.99 USD

Who It Is For

The original DS is perfect for retro gaming collectors, fans of Nintendo's classic library (including GBA titles), and those who appreciate the unique dual-screen experience. It's also a great entry point for emulation of Genesis, SNES, and GBA games.

Buying Notes

As a discontinued device, the original DS is available second-hand. Prices vary by condition and color (titanium, sky blue, candy pink, etc.). Ensure the screens are scratch-free and the hinge is sturdy. The battery may need replacement after years of use. No official release date or price changes beyond the original $149.99 are known.

Specifications
CPUARM946E-S, ARM7TDMI
GPU2D Graphics Engine, 3D Graphics Engine
内存4 MB SRAM
别名NDS, Original NDS, NDS Lunchbox
名称DS
品牌Nintendo
存储Built-in 256 KB
电池850 mAh
重量275 grams
CPU主频67.028 MHz (ARM946E-S), 33.514 MHz (ARM7TDMI)
处理器Custom SoC
屏幕PPI106.7
扬声器Mono speaker
连接性802.11 WiFi
发布时间2004 / 11
外壳材质Plastic
外观尺寸148.7 mm x 84.7 mm x 28.9 mm
屏幕尺寸3.0 inches x2
屏幕比例4:3
屏幕类型TN LCD (top), TN LCD touchscreen (bottom)
握持类型Clamshell / Foldable
操作系统Nintendo DS System Software
机身颜色Titanium, Sky Blue, Candy Pink, Snow White, Magma Red, Gold, Pearl Pink, Deep Cyan
起售价格$149.99
音频输出3.5mm headphone jack
其他传感器Microphone, Stylus
屏幕分辨率256 × 192
屏幕刷新率60Hz
CPU核心和线程数Single Core (ARM946E-S), Single Core (ARM7TDMI)
模拟器游戏支持Most Genesis/GBA/SNES playable

Full specs and updates on our site: https://www.oldman.dpdns.org/en/handheld/nintendo-ds
