Overview

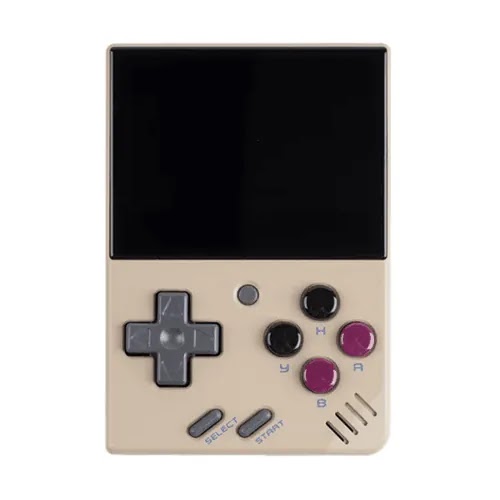

The Miyoo Mini is a vertically-oriented handheld gaming device designed for retro enthusiasts. Powered by a SigmaStar SSD202D processor with a dual-core Cortex-A7 CPU clocked at 1.2 GHz and a 2D graphics accelerator, it delivers smooth performance for classic games up to the PlayStation 1 era. The device features a 2.8-inch IPS display with a 4:3 aspect ratio and 640x480 resolution, offering crisp visuals at 285.71 PPI. It runs on an open-source operating system and supports external storage via MicroSD cards up to 128GB.
Key Specs Highlights
- Processor: SigmaStar SSD202D (Cortex-A7 dual-core, 1.2 GHz)
- GPU: 2D Graphics Accelerator
- Memory: 128 MB DDR3
- Storage: 16MB onboard + MicroSD (up to 128GB)
- Display: 2.8-inch IPS, 640x480, 4:3 ratio
- Battery: 2000 mAh (replaceable)
- Weight: 106 grams
- Dimensions: 65 x 93.5 x 18 mm
- Audio: Mono speaker, 3.5mm headphone jack
- Connectivity: None (no Wi-Fi or Bluetooth)
- Haptic: Vibration motor included
- OS: Open-source system
Who It Is For
The Miyoo Mini is perfect for retro gaming fans who want a highly portable device for playing classic titles from NES, SNES, Game Boy, and PS1. Its small size and lightweight design make it ideal for on-the-go gaming, while the replaceable battery ensures extended play sessions. It is not suited for modern 3D games or those requiring network connectivity.
Buying Notes
Priced around $52 (approximately ¥200-¥300), the Miyoo Mini offers excellent value for its performance. It is available in multiple colors: white, retro gray, transparent blue, and transparent black. Note that the device lacks video output and wireless connectivity, so it is a standalone handheld. The open-source OS allows for customization, but users should be comfortable with manual setup. As of its release in December 2021, it remains a popular choice among retro gaming communities.
| CPU | Cortex-A7 |
|---|---|
| GPU | 2D Graphics Accelerator |
| Name | Miyoo Mini |
| Brand | Miyoo |
| Memory | 128 MB DDR3 |
| Weight | 106 grams |
| Aliases | Miyoo Mini, Miyoo Mini, Miyoo Mini |
| Battery | 2000 mAh (replaceable) |
| Cooling | None |
| Speaker | Mono |
| Storage | 16MB onboard, external MicroSD (up to 128GB) |
| Grip Type | Vertical |
| Processor | SigmaStar SSD202D |
| Vibration | Yes |
| Dimensions | 65 mm x 93.5 mm x 18 mm |
| Screen PPI | 285.71 |
| Body Colors | White, Retro Gray, Transparent Blue, Transparent Black |
| Price Range | ¥200 - ¥300 |
| Screen Size | 2.8 inches |
| Screen Type | IPS |
| Audio Output | 3.5mm headphone jack |
| Connectivity | None |
| Release Date | December 2021 |
| Screen Ratio | 4:3 |
| Video Output | None |
| CPU Frequency | 1.2 GHz |
| Other Sensors | None |
| Shell Material | Plastic |
| Starting Price | $52 |
| Operating System | Open-source system |
| Screen Resolution | 640 x 480 |
| Screen Refresh Rate | 60Hz |
| CPU Cores and Threads | 2 cores, 2 threads |
| Emulator Game Support | Up to PS1; SNES and PS1 almost full speed, except for a few FX chip SNES games and 3D PS1 games with slight stutter |
