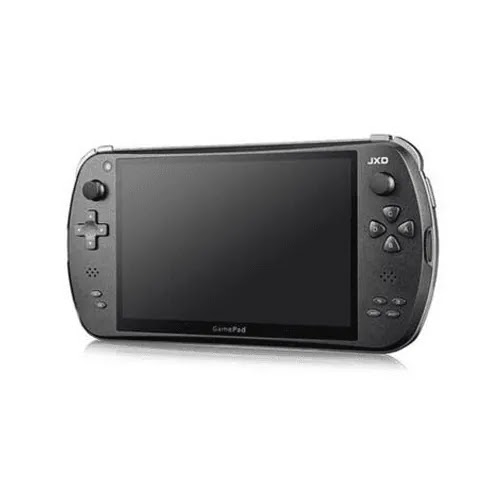

JXD S7800B Review: A 7-Inch Android Gaming Handheld with RK3188 Chip

JXD S7800B Review: A 7-Inch Android Gaming Handheld with RK3188 Chip

Overview

The JXD S7800B is a versatile Android gaming handheld designed for retro gaming enthusiasts. Running Android 4.2.2, it is powered by a RockChip 3188 quad-core processor (Cortex-A9, 1.4GHz) with Mali-400 MP4 GPU, 2GB DDR3 RAM, and 8GB internal storage. The device sports a 7-inch IPS display with 1280x800 resolution and 5-point capacitive touch. It offers multiple control methods: physical buttons (D-pad, ABXY, dual analog sticks, L/R triggers), touchscreen, and 3-axis gyroscope.

Key Specs Highlights

  • Display: 7-inch IPS, 1280x800, 215.6 PPI
  • Processor: RockChip 3188 quad-core 1.4GHz
  • RAM: 2GB DDR3
  • Storage: 8GB (expandable via microSD up to 32GB)
  • Battery: 5000mAh lithium-polymer
  • Connectivity: Wi-Fi 802.11 b/g/n, Ethernet (via OTG), 3G (via USB dongle)
  • Ports: USB 2.0 with OTG, 3.5mm headphone jack, microSD slot, HDMI output (1080P)
  • Cameras: Rear 2MP, front 0.3MP
  • Controls: D-pad, ABXY, dual analog sticks, L/R triggers, Select, Start, Volume, Reset, Power, Home, Back, Menu, Mode button
  • Dimensions: 245 x 120.5 x 16.5 mm, 500g

Who It Is For

The JXD S7800B is ideal for retro gaming fans who want a dedicated handheld for emulating classic consoles like PSP, NDS, PS1, N64, arcade (FBA/MAME, CPS1-3, Neo-Geo), GBA, SFC, MD, FC, and WSC. It also runs Android apps and games, making it suitable for users who prefer physical controls over touchscreens. The large 7-inch screen and HDMI output make it a good choice for gaming on the go or connecting to a TV.

Buying Notes

As an older device (Android 4.2.2), the S7800B may not support the latest Android apps or games. Performance is adequate for emulation up to PSP and N64, but more demanding systems may struggle. The 5000mAh battery provides decent playtime. Check for availability and pricing from second-hand sellers, as this model is discontinued. Ensure the unit includes the OTG cable and charger for full functionality.

Specifications
OSAndroid 4.2.2
CPURK3188
DDR2GB DDR3
内存2GB
别名JinXing S7800B
名称JXD S7800B
品牌JXD
喇叭Dual speakers
存储8GB
按键D-pad, ABXY, L/R, dual analog sticks, Select, Start, Volume, Reset, Power, Home, Back, Menu, Mode button
接口USB 2.0 high-speed with OTG (keyboard, mouse, Ethernet, 3G dongle, USB drive, HDD), 3.5mm stereo headphone jack, microSD slot (up to 32GB)
电池5000mAh
网络Wi-Fi 802.11 b/g/n, Ethernet (via OTG), 3G (via USB dongle) - three internet methods
芯片RockChip 3188 quad-core 1.4GHz (Cortex-A9 CPU, ARM Mali400 MP4 GPU)
颜色Black
屏幕PPI215.6
摄像头Rear 2MP, front 0.3MP
显示屏7-inch (diagonal) IPS LCD, 1280x800 pixels
触控屏5-point capacitive touchscreen (G+G pure glass)
包装内容Device, user manual, USB cable, OTG cable, certificate of quality, after-sales service guide
外壳材质Plastic
屏幕尺寸7.0 inches
屏幕比例16:10
屏幕类型IPS
握持类型Horizontal
操作系统Android
机身颜色Black
游戏控制Three control methods: 5-point capacitive touch, physical buttons (dual analog sticks, dual L/R), gyroscope
游戏支持100,000 Android games, 16 types of emulator games (PSP, NDS, PS1, N64, FBA/MAME arcade, CPS1/CPS2/CPS3, Neo-Geo, GBA, SFC, MD, FC, WSC), game cloud, device-tested game download channel
源和电池Built-in 5000mAh rechargeable lithium-polymer battery, via 5V 2A DC power adapter
电视输出HDMI dual-screen output, up to 1080P
语言版本Multi-language support
重力感应3-axis gyroscope sensor
尺寸与重量Length: 245mm, Width: 120.5mm, Thickness: 16.5mm, Weight: 500g
屏幕分辨率1280 x 800
屏幕刷新率60Hz
电脑操作系统Windows 98SE/ME, Windows 2000, Windows XP or later
S7800技术规格显示屏7 英寸 (对角线) IPS液晶显示屏 ，1280*800 像素触控屏5点电容式触摸屏(G+G纯屏)芯片RockChip 3188 4核1.4GHz (cortex A9 CPU,ARM mali400 mp4 GPU)DDR2GB DDR3存储8GBOSAndroid 4.2.2游戏支持10万安卓游戏、16大类模拟器游戏（PSP、NDS、PS1、N64、FBA\/MAME街机 CPS1\/CP2\/CPS3、Neo-Geo、GBA、SFC、MD、FC、WSC）、游戏云、机型亲测游戏下载 频道游戏控制3种游戏控制方式：5点电容触摸、完美按键控制（双专业摇杆、双LR）、重力感应控制按键方向键、ABXY、LR、双类比摇杆、select、 start、音量、复位、电源、Home、Back、 Menu、按键模式键网络Wi-Fi(802.11 b\/g\/n)、外接以太网线、外接3G ，共三种上网方式重力感应3轴重力感应传感器摄像头后置200万像素，前置30万像素喇叭双喇叭源和电池内置5000mA可充电锂聚合物电池 通过5V 2A DC电源适配器接口USB2.0高速接口 支持OTG功能：外接键盘、鼠标、以太网线、3G上网卡、U盘、硬盘 3.5毫米立体声耳机迷你插孔 Micro TF 卡插槽，*可支持32GB电视输出HDMI 双屏输出，*1080P语言版本支持多国语言电脑操作系统Windows98SE\/ME；Windows2000；Windows XP或以上颜色黑尺寸与重量长度： 245毫米 宽度： 120.5毫米 厚度：16.5毫米 重量：500克包装内容机器、使用说明书、USB线 、OTG线 、合格证、售后服务指南S7800 Technical Specifications

Full specs and updates on our site: https://www.oldman.dpdns.org/en/handheld/jxd-s7800b
