JXD S5800 Handheld Game Console Review

JXD S5800 Handheld Game Console Review

Overview

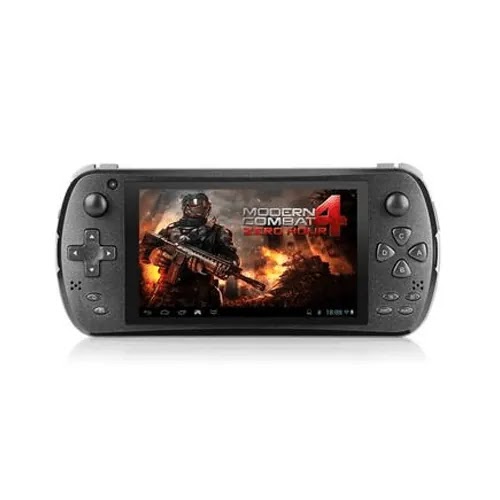

The JXD S5800, also known as the Jinxing S5800, is a horizontal handheld game console running Android. It features a 5.0-inch display with a resolution of 960x540 pixels (220.3 PPI) and a 16:9 aspect ratio. Powered by a MediaTek MTK6582 quad-core Cortex-A7 processor clocked at an unspecified frequency and a Mali-M400 GPU, the device comes with 1GB DDR3 RAM and 8GB internal storage, expandable via microSD card up to 32GB. The 3000 mAh battery provides ample playtime, and the plastic body weighs 259 grams. Connectivity options include Wi-Fi (802.11 b/g/n), 3G WCDMA + 2G, Bluetooth 4.0, and a USB 2.0 port. The S5800 supports 5-point capacitive touch and a 3-axis gravity sensor.

Key Specs Highlights

  • CPU: Cortex-A7 (MediaTek MTK6582)
  • GPU: Mali-M400
  • RAM: 1GB DDR3
  • Storage: 8GB internal + microSD up to 32GB
  • Display: 5.0-inch, 960x540, 60Hz
  • Battery: 3000 mAh
  • Connectivity: Wi-Fi, 3G, Bluetooth 4.0, USB 2.0
  • OS: Android
  • Weight: 259g
  • Dimensions: 198 x 156 x 88 mm

Who It Is For

The JXD S5800 is ideal for retro gaming enthusiasts who want a dedicated handheld device capable of emulating classic consoles such as PSP, NDS, PS1, N64, and many more (including CPS1/2/3, MAME, GBA, GBC, SFC, MD, FC, and WSC). Its Android OS also allows for casual gaming and app usage. The inclusion of 3G connectivity makes it suitable for those who want online features on the go.

Buying Notes

As a discontinued model, the JXD S5800 may be found on second-hand markets or from remaining stock. No official price or release date is available. Ensure the battery and screen are in good condition when purchasing used. The device's plastic build is lightweight but may feel less premium. For emulation, performance varies by game; PSP and NDS titles may require tweaking. Check for custom firmware options to enhance functionality.

Specifications
CPUCortex-A7
GPUMali-M400
RAM1GB DDR3
NameJXD S5800
AliasJinxing S5800
BrandJXD
Weight259 grams
Battery3000 mAh
StorageInternal 8GB Flash, supports external 32GB TF card
Grip TypeHorizontal
ProcessorMTK6582
Body ColorBlack
Dimensions198 mm x 156 mm x 88 mm
Screen PPI220.3
Screen Size5.0 inches
ConnectivityWi-Fi (802.11 b/g/n), 3G WCDMA + 2G, Bluetooth 4.0, Interface USB2.0
Screen Ratio16:9
Other Sensors5-point capacitive touch, 3-axis gravity sensor
Shell MaterialPlastic
Operating SystemAndroid
Screen Resolution960 x 540
Screen Refresh Rate60Hz
Emulator Game SupportPSP, NDS, PS1, N64, aFBA (CPS1/CPS2/CPS3/IGS), mame, GBA, GBC, SFC, MD, FC, WSC

Full specs and updates on our site: https://www.oldman.dpdns.org/en/handheld/jxd-s5800
