GPD Win Mini Review: A Powerful Clamshell Handheld Gaming PC

GPD Win Mini Review: A Powerful Clamshell Handheld Gaming PC

Overview

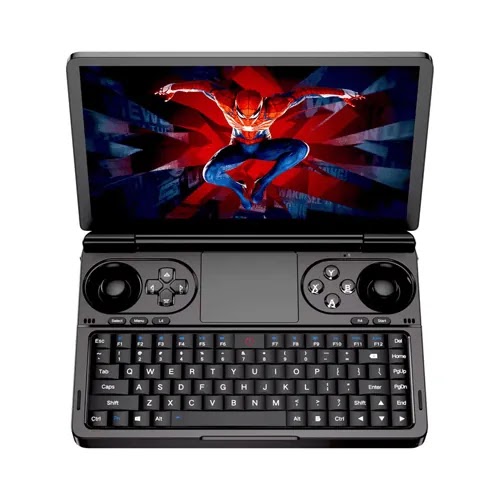

The GPD Win Mini is a clamshell-style handheld gaming PC that combines portability with powerful hardware. It features AMD's latest Zen 4 processors (Ryzen 5 7640U or Ryzen 7 7840U) and Radeon 700M series graphics, making it capable of running modern PC games and emulating consoles like the Nintendo Switch, PS2, and Wii U. The 7-inch 1920x1080 IPS touchscreen provides crisp visuals, while the compact design (168mm x 109mm x 26.8-31.7mm) and 520g weight make it easy to carry.

Key Specs Highlights

  • Processor: AMD Ryzen 5 7640U (6 cores, 12 threads) or Ryzen 7 7840U (8 cores, 16 threads)
  • Graphics: AMD Radeon 760M (7640U) or Radeon 780M (7840U)
  • Memory: 16GB or 32GB LPDDR5 RAM
  • Storage: 512GB / 1TB / 2TB M.2 2230 SSD, expandable via MicroSD
  • Display: 7-inch 1920x1080 IPS touchscreen, 60Hz, 319 PPI
  • Battery: 44.24Wh
  • Connectivity: WiFi 6E, Bluetooth 5.2, USB4, OcuLink, 3.5mm headphone jack
  • Controls: Hall effect analog sticks and triggers, gyroscope, dual stereo speakers
  • OS: Windows

Who It Is For

The GPD Win Mini is ideal for gamers who want a portable Windows gaming device that can handle AAA titles and emulation. Its clamshell design protects the screen and controls, making it suitable for travel. It's also great for users who need a compact PC for productivity tasks, thanks to the full Windows OS.

Buying Notes

Prices start at $699 for the Ryzen 5 7640U / 16GB / 512GB model, $869 for the Ryzen 7 7840U / 32GB / 512GB model, and $999 for the Ryzen 7 7840U / 32GB / 2TB model. The device was released in November 2023. Consider your performance needs: the 7840U with Radeon 780M offers significantly better graphics performance. The 44.24Wh battery provides moderate battery life; expect 2-4 hours of gaming depending on settings. The OcuLink port allows connection to external GPUs for desktop-level performance.

Specifications
CPUAMD Zen 4
GPUAMD Radeon 760M / AMD Radeon 780M
NameGPD Win Mini
BrandGPD
Memory16 GB / 32 GB LPDDR5
Weight520 g
Battery44.24 Wh
CoolingHeat pipe fan, vents
StorageInternal 512 GB / 1 TB / 2 TB M.2 2230 SSD, External MicroSD
SpeakersDual stereo
ProcessorAMD Ryzen 5 7640U / AMD Ryzen 7 7840U
VibrationYes
Body ColorBlack
Dimensions168 mm x 109 mm x 26.8 - 31.7 mm
Screen PPI319.26
Form FactorClamshell / Foldable
Price Range$700 - $2000
Screen Size7.0 inches
Screen TypeLTPSTouchscreen
Audio Output3.5mm headphone jack
ConnectivityWiFi 6E, Bluetooth 5.2, USB4, OcuLink
Release Date2023 / 11
Screen Ratio16:9
Video OutputOcuLink, USB-C video output
CPU Frequency3.5 GHz - 4.9 GHz / 3.3 GHz - 5.1 GHz
Other SensorsGyroscope, Hall effect triggers and analog sticks
Shell MaterialPlastic, Magnesium Alloy combination
Starting Price7640U/16GB/512GB: $699; 7840U/32GB/512GB: $869; 7840U/32GB/2TB: $999
Operating SystemWindows
Screen Resolution1920 x 1080
GPU Core Frequency2.6 GHz / 2.7 GHz
Screen Refresh Rate60Hz
CPU Cores and Threads6 cores 12 threads / 8 cores 16 threads
Emulator Game SupportGamecube, Wii, PS2, Wii U, Switch playable

Full specs and updates on our site: https://www.oldman.dpdns.org/en/handheld/gpd-win-mini
