GPD Win Max Review: A Powerful Handheld Gaming PC

GPD Win Max Review: A Powerful Handheld Gaming PC

Overview

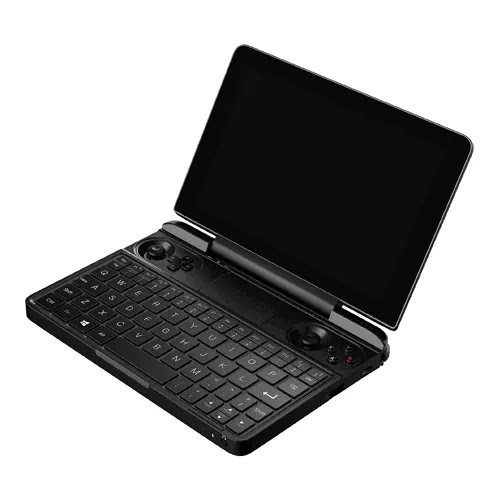

The GPD Win Max is a compact clamshell handheld gaming PC that packs a full Windows experience into a portable device. Featuring an 8-inch IPS touchscreen with 1280x800 resolution, it is powered by an Intel Core i5-1035G7 processor (Ice Lake-U) with Iris Plus 940 graphics. With 16GB of LPDDR4 RAM and a 512GB NVMe SSD, it delivers smooth performance for modern PC games and emulation. The device includes a full keyboard, dual stereo speakers, and extensive connectivity options including Thunderbolt 3, USB-A, and Ethernet.

Key Specs Highlights

  • Processor: Intel Core i5-1035G7 (4 cores, 8 threads, 0.8-3.7 GHz)
  • GPU: Intel Iris Plus 940 (64EU, 300 MHz - 1.05 GHz)
  • RAM: 16GB LPDDR4 (7466 MT/s)
  • Storage: 512GB M.2 NVMe SSD + MicroSD slot
  • Display: 8.0-inch IPS touchscreen, 1280x800, 60Hz
  • Battery: 15000 mAh (57 Wh)
  • Weight: 823 grams
  • OS: Windows
  • Connectivity: WiFi 6, Bluetooth 5.0, Thunderbolt 3 USB-C, USB-C, 2x USB-A, Ethernet, HDMI, 3.5mm audio

Who It Is For

The GPD Win Max is designed for gamers and power users who want a full Windows PC in a handheld form factor. It is ideal for playing PC games on the go, running productivity software, and emulating retro consoles up to PS2, Gamecube, and Wii. The clamshell design with a built-in keyboard makes it suitable for both gaming and light productivity tasks.

Buying Notes

The GPD Win Max was released in September 2020. Pricing started at $779 for pre-order and $999 at retail. As a discontinued model, availability may be limited to second-hand markets or remaining stock. Ensure you verify the condition and warranty before purchasing. The device offers excellent performance for its size but note the 1280x800 resolution and 60Hz refresh rate may not satisfy users seeking high-resolution or high-refresh-rate displays.

Specifications
CPUIntel Ice Lake-U
GPUIntel Iris Plus 940 64EU
内存16GB LPDDR4 (7466 MT/s)
名称GPD Win Max
品牌GPD
存储Built-in 512GB M.2 NVMe SSD & External MicroSD
散热Active heatsink and fan, air vents
电池15000 mAh (57 Wh)
重量823 grams
CPU主频0.8 GHz - 3.7 GHz
处理器Intel Core i5-1035G7
屏幕PPI188.68
扬声器Dual stereo speakers
连接性Bluetooth 5.0, WiFi 6, USB-A x 2, Thunderbolt 3 USB-C, USB-C, Ethernet
价格区间$700 - $2000
发布时间2020 / 09
外壳材质Metal
外观尺寸205 mm x 140 mm x 24.5 mm
屏幕尺寸8.0 inches
屏幕比例16:10
屏幕类型IPS touchscreen
握持类型Clamshell / Foldable
操作系统Windows
机身颜色Black
视频输出HDMI
起售价格$779 (Pre-order price); $999 (retail)
音频输出3.5mm headphone jack
GPU核心频率300 MHz - 1.05 GHz
其他传感器Microphone, Hall effect joysticks
屏幕分辨率1280 x 800
屏幕刷新率60Hz
CPU核心和线程数4 cores 8 threads
模拟器游戏支持Up to some PS2, Gamecube, and Wii

Full specs and updates on our site: https://www.oldman.dpdns.org/en/handheld/gpd-win-max
