GamePi20 (WaveShare) – A Compact Retro Gaming Handheld

GamePi20 (WaveShare) – A Compact Retro Gaming Handheld

Overview

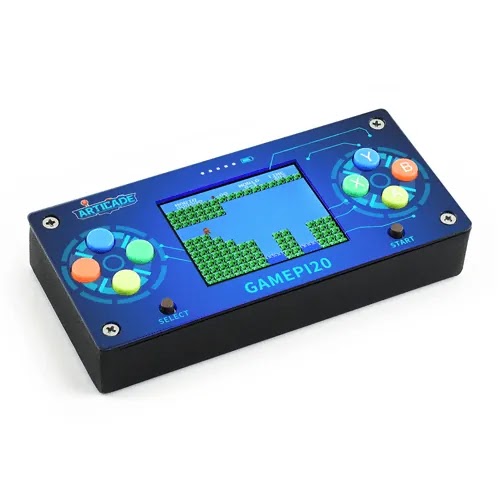

The GamePi20 is a compact retro gaming handheld developed by WaveShare, designed for enthusiasts who enjoy classic games on the go. It is built around the Broadcom BCM2835 system-on-chip, featuring a single-core ARM1176JZF-S CPU clocked at 1.0 GHz and a VideoCore IV GPU running at 250 MHz. With 512 MB of DDR RAM and a microSD card for storage, it runs the RetroPie operating system, providing a user-friendly interface for emulating a wide range of retro consoles.

Key Specs Highlights

  • CPU: Broadcom BCM2835 (ARM1176JZF-S, 1.0 GHz, 1 core 1 thread)
  • GPU: Broadcom VideoCore IV (250 MHz)
  • RAM: 512 MB DDR
  • Display: 2.0-inch IPS, 320x240 resolution, 4:3 aspect ratio, 200 PPI, 60Hz refresh rate
  • Storage: Built-in MicroSD card slot
  • Connectivity: Bluetooth, WiFi, Mini HDMI video output, 3.5mm headphone jack
  • Battery: 14500 cell (replaceable)
  • Dimensions: 108 mm x 50 mm x 20 mm, 150 grams
  • Material: Plastic (blue color)
  • Price: Originally $30 at launch, typically $50–$75

Who It Is For

The GamePi20 is ideal for retro gaming fans who want an affordable, pocket-sized device for emulating 8-bit and 16-bit consoles. It handles most SNES games at full speed (60 FPS) and runs most 2D PlayStation 1 games well, though not always at 60 FPS. It's a great choice for tinkerers and RetroPie enthusiasts who appreciate a compact form factor and basic connectivity options.

Buying Notes

As a WaveShare product, the GamePi20 is often sold as a kit or pre-assembled unit. Availability may vary; check online retailers like AliExpress or Amazon. The price range is typically between $50 and $75, though it launched at $30. Note that the battery uses a 14500 cell (not included with some kits), and the device lacks vibration, active cooling, or advanced sensors. The mono speaker is basic, but the Mini HDMI output allows connection to external displays.

Specifications
CPUARM1176JZF-S
GPUBroadcom VideoCore IV
内存512 MB DDR
名称GamePi20
品牌WaveShare
存储Built-in MicroSD
电池14500
重量150 g
CPU主频1.0 GHz
处理器Broadcom BCM2835
屏幕PPI200
扬声器Mono
连接性Bluetooth, WiFi
价格区间$50 - $75
发布时间2019 / 08
外壳材质Plastic
外观尺寸108 mm x 50 mm x 20 mm
屏幕尺寸2.0 inches
屏幕比例4:3
屏幕类型IPS
握持类型Horizontal
操作系统RetroPie
机身颜色Blue
视频输出Mini HDMI
起售价格$30
音频输出3.5mm headphone jack
GPU核心频率250 MHz
屏幕分辨率320 x 240
屏幕刷新率60Hz
CPU核心和线程数1 core 1 thread
模拟器游戏支持Most SNES runs at 60 FPS, most 2D PS1 runs well (not all at 60 FPS)

Full specs and updates on our site: https://www.oldman.dpdns.org/en/handheld/gamepi20
