BOYHOM R46S Handheld Gaming Console Review

BOYHOM R46S Handheld Gaming Console Review

Overview

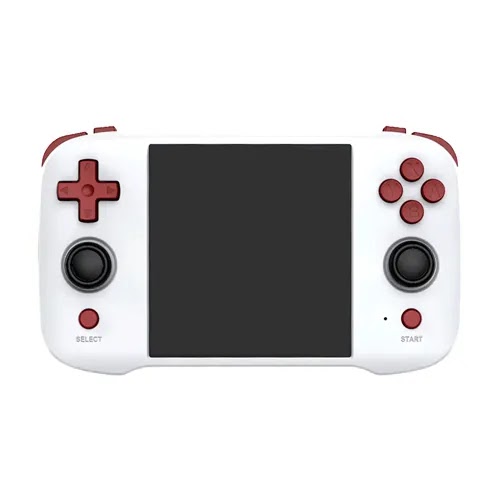

The BOYHOM R46S is a compact retro gaming handheld that runs on an open-source operating system. It is built around the RockChip RK3566 processor with a quad-core Cortex-A55 CPU and Mali-G52 2EE GPU, providing enough power for emulating classic consoles up to the N64, PSP, and Dreamcast era. The device features a unique 4-inch IPS display with a 1:1 aspect ratio and 720x720 resolution, making it ideal for playing older games that were originally designed for square screens.

Key Specs Highlights

  • Processor: RockChip RK3566 (4x Cortex-A55 @ 1.8 GHz)
  • GPU: Mali-G52 2EE @ 850 MHz
  • Memory: 1 GB LPDDR4
  • Storage: Dual external MicroSD card slots
  • Display: 4.0-inch IPS, 720x720, 60 Hz, 254.56 PPI
  • Connectivity: WiFi 5, Bluetooth, USB-C, Mini HDMI, 3.5mm audio jack
  • Battery: 4100 mAh
  • Features: Gyroscope, microphone, dual stereo speakers, vibration
  • Dimensions: 185 x 80 x 20 mm, plastic shell
  • Colors: White, black, black transparent, orange transparent
  • Price: Approximately $70 (launch price)

Who It Is For

The R46S is perfect for retro gaming enthusiasts on a budget who want a dedicated handheld for playing classic titles from N64, PSP, and Dreamcast. Its square screen is particularly appealing for fans of older arcade and console games that used 4:3 or 1:1 aspect ratios. It is also suitable for tinkerers who enjoy open-source systems and custom firmware.

Buying Notes

At around $70, the R46S offers excellent value for its performance and features. However, note that the 1 GB RAM may limit performance in heavier PSP and Dreamcast titles; some games may not run at full speed. The dual microSD slots provide ample storage flexibility. The device lacks active cooling, so prolonged gaming sessions may cause thermal throttling. Check for current pricing and availability as the market fluctuates.

Specifications
CPUCortex-A55
GPUMali-G52 2EE
NameR46S
BrandBOYHOM
Memory1 GB LPDDR4
Battery4100 mAh
CoolingNone
StorageDual external MicroSD
SpeakersDual stereo
Grip TypeHorizontal
ProcessorRockChip RK3566
VibrationYes
Dimensions185 mm x 80 mm x 20 mm
Screen PPI254.56
Body ColorsWhite, black, black transparent, orange transparent
Price Range￥300 - ￥500
Screen Size4.0 inches
Screen TypeIPS
Audio Output3.5mm headphone jack
ConnectivityWiFi 5, Bluetooth, USB-C
Launch Price$70
Release Date2024 / 09
Screen Ratio1:1
Video OutputMini HDMI
CPU Frequency1.8 GHz
Other SensorsGyroscope, microphone
Shell MaterialPlastic
Operating SystemOpen source system
Screen Resolution720 x 720
GPU Core Frequency850 MHz
Screen Refresh Rate60Hz
CPU Cores and Threads4 cores 4 threads
Emulator Game SupportN64, PSP & Dreamcast most games playable, some games cannot reach full frame rate

Full specs and updates on our site: https://www.oldman.dpdns.org/en/handheld/boyhom-r46s
