Overview

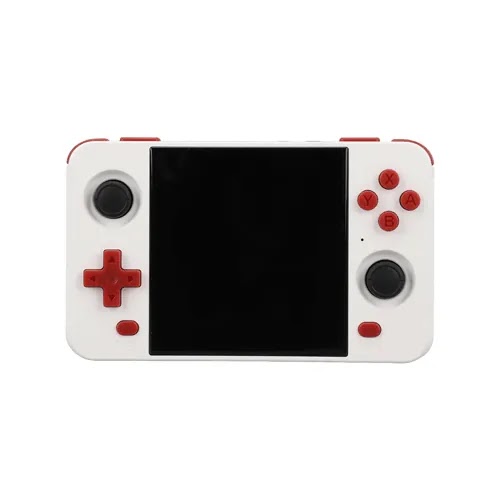

The BOYHOM R40s is a compact retro handheld gaming console released in May 2024. It features a distinctive 4-inch IPS touchscreen with a 1:1 aspect ratio and 720x720 resolution, offering a unique square display. Powered by the RockChip RK3566 processor (Cortex-A55 quad-core at 1.8 GHz) and Mali-G52 2EE GPU (850 MHz), it provides smooth emulation for classic systems up to N64, PSP, and Dreamcast. The device runs an open-source operating system and includes dual TF card slots for expandable storage, WiFi 5, Bluetooth, Mini HDMI output, dual stereo speakers, and a 4000 mAh battery. Available in blue, yellow, black, and white plastic shells.
Key Specs Highlights
- Display: 4.0-inch IPS touchscreen, 720x720 resolution, 1:1 ratio, 60Hz, 254.6 PPI
- Processor: RockChip RK3566 (Cortex-A55, 4 cores, 1.8 GHz)
- GPU: Mali-G52 2EE @ 850 MHz
- Memory & Storage: 1 GB LPDDR4 RAM; dual external TF card slots
- Connectivity: WiFi 5, Bluetooth, USB-C x2, Mini HDMI, 3.5mm audio jack
- Battery: 4000 mAh
- Weight: 211 grams
- Dimensions: 145 x 86.5 x 10 mm
Who It Is For
This handheld is perfect for retro gaming enthusiasts who want a budget-friendly device with a unique square screen for playing classic titles from N64, PSP, Dreamcast, and older systems. It suits collectors and tinkerers who appreciate open-source firmware and expandable storage via dual TF cards.
Buying Notes
Priced around $70 (approximately ¥508 CNY), the R40s offers excellent value for its feature set. Note that it lacks active cooling and vibration feedback. The 1:1 screen is ideal for certain retro games but may not be optimal for widescreen content. Available in multiple colors; check for current pricing and availability from BOYHOM or third-party retailers.
| CPU | Cortex-A55 |
|---|---|
| GPU | Mali-G52 2EE |
| Name | BOYHOM R40s |
| Alias | R40s |
| Brand | BOYHOM |
| Memory | 1 GB LPDDR4 |
| Weight | 211 g |
| Battery | 4000 mAh |
| Cooling | None |
| Storage | Dual external TF card slots |
| Speakers | Dual stereo |
| Grip Type | Horizontal |
| Processor | RockChip RK3566 |
| Vibration | ? |
| Dimensions | 145 mm x 86.5 mm x 10 mm |
| Screen PPI | 254.6 |
| Body Colors | Blue, yellow, black, white |
| Price Range | ¥300 - ¥500 |
| Screen Size | 4.0 inches |
| Screen Type | IPS touchscreen |
| Audio Output | 3.5mm headphone jack |
| Connectivity | WiFi 5, Bluetooth, USB-C x 2 |
| Launch Price | $70 (approximately ¥508) |
| Release Date | 2024 / 05 |
| Video Output | Mini HDMI |
| CPU Frequency | 1.8 GHz |
| Shell Material | Plastic |
| Operating System | Open-source system |
| Screen Resolution | 720 x 720 |
| GPU Core Frequency | 850 MHz |
| Screen Aspect Ratio | 1:1 |
| Screen Refresh Rate | 60Hz |
| CPU Cores and Threads | 4 cores 4 threads |
| Emulator Game Support | Up to N64, PSP & Dreamcast |
Full specs and updates on our site: https://www.oldman.dpdns.org/en/handheld/boyhom-r40s
