AYANEO Flip KB: A Clamshell Handheld Gaming PC with Keyboard

AYANEO Flip KB: A Clamshell Handheld Gaming PC with Keyboard

Overview

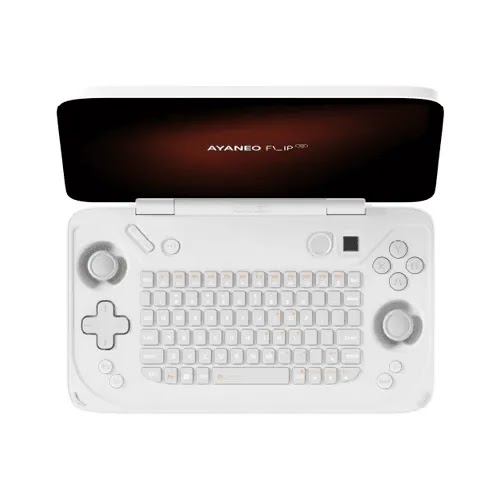

The AYANEO Flip KB is a unique clamshell handheld gaming PC that combines the portability of a handheld with the functionality of a built-in keyboard. Powered by AMD Ryzen 7 8840U or 7840U processors and Radeon 780M integrated graphics, it delivers solid performance for modern gaming and productivity tasks. The 7-inch IPS touchscreen with 1920x1080 resolution and 60Hz refresh rate provides a crisp visual experience. With up to 64GB of LPDDR5x RAM and storage options up to 2TB, the Flip KB is designed for users who need both power and versatility.

Key Specs Highlights

  • Processor: AMD Ryzen 7 8840U / 7840U (8 cores, 16 threads, up to 5.1 GHz)
  • Graphics: AMD Radeon 780M (up to 2.7 GHz)
  • Memory: 16GB / 32GB / 64GB LPDDR5x
  • Storage: 512GB / 2TB M.2 2230 SSD + MicroSD expansion
  • Display: 7.0-inch IPS touchscreen, 1920x1080, 60Hz, 319 PPI
  • Battery: 45 Wh
  • Connectivity: WiFi 6E, Bluetooth 5.2, OcuLink, USB-C video output, 3.5mm headphone jack
  • Features: Fingerprint reader, gyroscope, Hall sensor joysticks/triggers, optical mouse
  • Dimensions: 180 x 102 x 29.8-37.5 mm, 650g

Who It Is For

The AYANEO Flip KB is ideal for gamers and professionals who want a compact, all-in-one device. Its clamshell design with a physical keyboard makes it suitable for typing-intensive tasks like chat, email, or light productivity, while the powerful hardware handles AAA games and emulation up to PS2, Wii U, and most Switch titles. It's a great choice for those who prefer a handheld with a built-in keyboard over a separate accessory.

Buying Notes

Pricing ranges from $699 to $1439 depending on configuration. The device was released in January 2024. Available in black and white plastic shells. Note that the battery capacity is 45Wh, which may be modest for extended gaming sessions. The OcuLink port allows for external GPU expansion, enhancing future-proofing. Always check current availability and pricing from official retailers.

Specifications
CPUAMD Zen 4
GPUAMD Radeon 780M
NameAYANEO Flip KB
AliasAYANEO Flip Device
BrandAYANEO
Memory16 GB / 32 GB / 64 GB LPDDR5x
Weight650 g
Battery45 Wh
CoolingFan ventilation cutouts
StorageBuilt-in 512 GB / 2 TB M.2 2230 SSD, external MicroSD
SpeakersDual stereo
Grip TypeClamshell / Foldable
ProcessorAMD Ryzen 7 8840U / AMD Ryzen 7 7840U
Body ColorBlack, White
Dimensions180 mm x 102 mm x 29.8 - 37.5 mm
Screen PPI319.26
Price Range$700 - $2000
Screen Size7.0 inches
Screen TypeIPS touchscreen
Audio Output3.5mm headphone jack
ConnectivityWiFi 6E, Bluetooth 5.2
Release Date2024 / 01
Screen Ratio16:9
Video OutputOcuLink, USB-C video output
CPU Frequency3.3 GHz - 5.1 GHz
Other SensorsFingerprint reader, gyroscope, Hall sensor joysticks/triggers, optical mouse
Shell MaterialPlastic
Starting Price$699 - $1439
Operating SystemWindows
Screen Resolution1920 x 1080
GPU Core Frequency2.7 GHz
Screen Refresh Rate60Hz
CPU Cores and Threads8 cores, 16 threads
Emulator Game SupportExcept for large AAA, almost all platforms supported, Gamecube, Wii, 3DS, PS2, Wii U, most Switch games run at full speed

Full specs and updates on our site: https://www.oldman.dpdns.org/en/handheld/ayaneo-flip-kb
