AYANEO Air: Ultra-Portable OLED Windows Handheld Gaming PC

AYANEO Air: Ultra-Portable OLED Windows Handheld Gaming PC

Overview

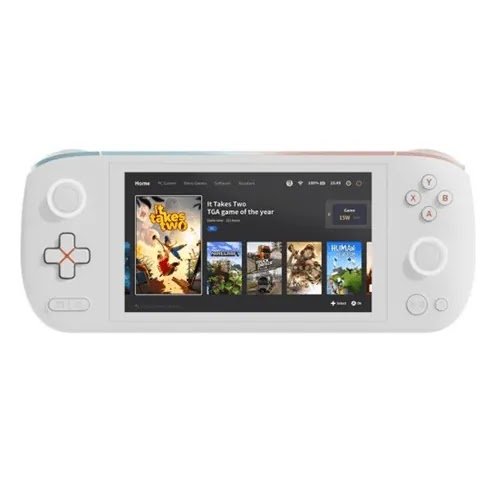

The AYANEO Air is a sleek, ultra-portable Windows handheld gaming device that combines a vibrant 5.5-inch OLED touchscreen with the power of an AMD Ryzen 5 5560U processor (Zen 3, 6 cores, 12 threads). With a weight of just 395 grams and a slim profile, it's designed for on-the-go gaming without sacrificing performance. The device runs Windows, offering broad compatibility with PC game libraries and emulators.

Key Specs Highlights

  • Processor: AMD Ryzen 5 5560U (2.3 GHz - 4.0 GHz, 6 cores/12 threads)
  • GPU: AMD Radeon RX Vega 7 (1.6 GHz)
  • Memory: 8 GB or 16 GB LPDDR4x
  • Storage: Replaceable M.2 2280 SSD (128/256/512 GB) + MicroSD slot
  • Display: 5.5-inch OLED, 1920x1080, 60Hz, 404 PPI, touchscreen
  • Battery: 7350 mAh (28Wh)
  • Connectivity: WiFi 6E, Bluetooth 5.2, USB-C (OTG & video output), 3.5mm headphone jack
  • Weight: 395 g (standard) / 410 g (Retro Power version)
  • Dimensions: 224 x 89.5 x 17 - 26.7 mm
  • OS: Windows

Who It Is For

The AYANEO Air is perfect for gamers who want a compact Windows handheld for emulation (up to PS2), indie games, and light AAA titles. Its OLED screen and lightweight design appeal to those prioritizing portability and display quality. It's also suitable for users who need a pocketable Windows PC for productivity tasks.

Buying Notes

Prices range from $400 to $700 depending on configuration. The early bird pricing was: 128 GB Air Youth at $499 ($549 regular), 256 GB Air at $569 ($629 regular), and 512 GB Air at $599 ($649 regular). Note that the device uses a plastic shell and has active cooling (ventilation). Available colors include black, white, pink, B.Duck, and Retro Power. The Retro Power version is slightly heavier (410g). Ensure you consider the battery life, which may be limited for demanding games.

Specifications
CPUAMD Zen 3
GPUAMD Radeon RX Vega 7
NameAYANEO Air
BrandAYANEO
Memory8 GB ~ 16 GB LPDDR4x
Weight395 g / 410 g
Battery7350 mAh (28Wh)
CoolingCooling vent
StorageExternal MicroSD, internal replaceable M.2 2280 SSD (128 GB / 256 GB / 512 GB)
SpeakersDual stereo
Grip TypeHorizontal
ProcessorAMD Ryzen 5 5560U
VibrationYes
Dimensions224 mm x 89.5 mm x 17 - 26.7 mm
Screen PPI404
Body ColorsBlack White Pink B.Duck Retro Power
Price Range$400 - $700
Screen Size5.5 inches
Screen TypeOLED touchscreen
Audio Output3.5mm headphone jack
ConnectivityWiFi 6E, Bluetooth 5.2, USB-C OTG
Launch Price128 GB Air Youth: $499 (Early bird) / $549 ; 256 GB Air: $569 (Early bird) / $629; 512 GB Air: $599 (Early bird) / $649
Release Date2022 / 08
Screen Ratio16:9
Video OutputUSB-C video output
CPU Frequency2.3 GHz - 4.0 GHz
Other SensorsFingerprint recognition, gyroscope, Hall effect joysticks and triggers
Shell MaterialPlastic
Operating SystemWindows
Screen Resolution1920 x 1080
GPU Core Frequency1.6 GHz
Screen Refresh Rate60Hz
CPU Cores and Threads6 cores 12 threads
Emulator Game SupportBasically no issues for games before PS2

Full specs and updates on our site: https://www.oldman.dpdns.org/en/handheld/ayaneo-air
