Arduboy FX Review: A Tiny Open-Source Handheld for Retro Coding Fun

Arduboy FX Review: A Tiny Open-Source Handheld for Retro Coding Fun

Overview

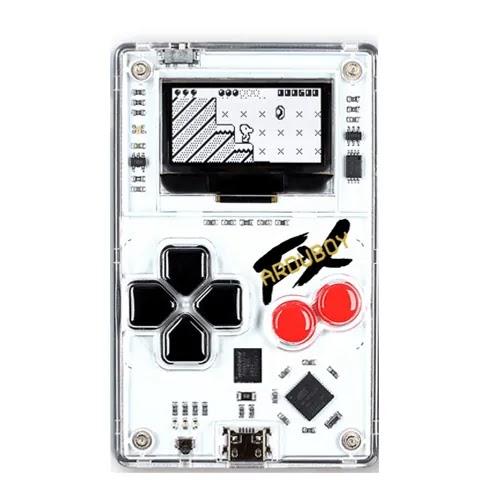

The Arduboy FX is a collaborative creation by Arduboy and Seeed Studio, designed as an ultra-portable, open-source gaming platform. Measuring just 54 mm x 86 mm x 5 mm and weighing 85 grams, it fits easily in a pocket. The device is powered by an ATMEGA32U4 microcontroller running at 16 MHz, with 2.5 KB SRAM, 32 KB Flash storage, and 1 KB EEPROM. Its 1.3-inch monochrome OLED screen (128x64 resolution, 2:1 aspect ratio) delivers crisp pixel graphics at 60 Hz. The built-in 180 mAh battery provides hours of gameplay, and the translucent white plastic case gives it a nostalgic, retro look.

Key Specs Highlights

  • Processor: ATMEGA32U4 (8-bit AVR, 16 MHz, 1 core 1 thread)
  • Memory: 2.5 KB SRAM, 32 KB Flash, 1 KB EEPROM
  • Display: 1.3-inch monochrome OLED, 128x64, 60 Hz, ~110 PPI
  • Battery: 180 mAh
  • Dimensions: 54 x 86 x 5 mm, 85 g
  • OS: Arduboy Game Loader
  • Color: Translucent white
  • Price: $54 (typical range $50–$75)
  • Release: April 2020

Who It Is For

The Arduboy FX is perfect for makers, programmers, and retro gaming enthusiasts who enjoy tinkering with hardware and writing their own games. It supports development via Arduino IDE, GCC, and AVRDude, and can run custom sketches. It is not for those seeking high-end graphics or commercial game libraries; instead, it offers a pure, DIY gaming experience reminiscent of early handhelds.

Buying Notes

Pricing typically falls between $50 and $75, with an official launch price of $54. Availability may vary; check Arduboy or Seeed Studio official channels. The device is region-free and comes with a USB port for loading games. No video or audio output is included. Given its niche appeal, consider your interest in programming before purchasing.

Specifications
CPUMicrochip 8-bit AVR microcontroller
内存2.5 KB SRAM
名称Arduboy FX
品牌Arduboy, Seeed Studio
存储32 KB Flash (built-in), 1 KB EEPROM
电池180 mAh
重量85 g
CPU主频16 MHz
处理器ATMEGA32U4
屏幕PPI110.08
扬声器Mono
价格区间$50 - $75
发布时间2020 / 04
外壳材质Plastic
外观尺寸54 mm x 86 mm x 5 mm
屏幕尺寸1.3 inch
屏幕比例2:1
屏幕类型Monochrome OLED
握持类型Vertical
操作系统Arduboy Game Loader
机身颜色Translucent white
起售价格$54
屏幕分辨率128 x 64
屏幕刷新率60 Hz
CPU核心和线程数1 core 1 thread
模拟器游戏支持Custom games only via Arduino IDE, Arduboy Game Loader, GCC, and AVRDude

Full specs and updates on our site: https://www.oldman.dpdns.org/en/handheld/arduboy-fx
