Anbernic RG-FC520: A Nostalgic NES Handheld

Anbernic RG-FC520: A Nostalgic NES Handheld

Overview

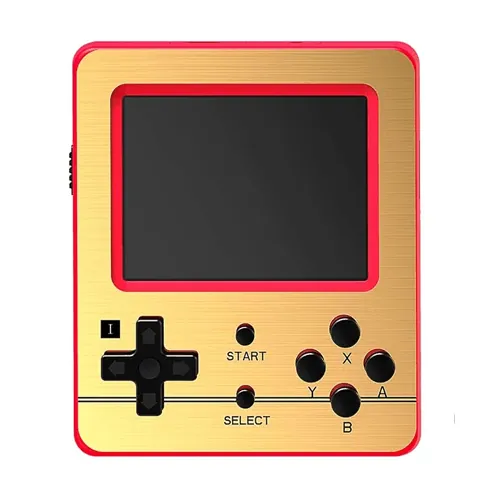

The Anbernic RG-FC520 is a compact handheld gaming device designed specifically for NES (Nintendo Entertainment System) emulation. It faithfully recreates the original NES hardware using a MOS Technology 6502 CPU and Ricoh 2C02 GPU, ensuring accurate gameplay. The device features a vertical form factor with a 3.0-inch TFT display (320x240 resolution) and includes essential connectivity like USB-C OTG and AV output.

Key Specs Highlights

  • CPU: MOS Technology 6502 @ 1.79 MHz
  • GPU: Ricoh 2C02 @ 5.37 MHz
  • RAM: 2 KB
  • Display: 3.0-inch TFT, 320x240, 4:3 aspect ratio
  • Battery: 600 mAh
  • Weight: 200 grams
  • Connectivity: USB-C OTG, AV Out, 3.5mm headphone jack
  • Vibration: Yes
  • Price Range: $0 - $50 (launched at $13)
  • Release Date: August 2020

Who It Is For

This handheld is perfect for NES enthusiasts who want a dedicated, portable device for playing classic 8-bit games. It's also ideal for collectors of retro gaming hardware and those who appreciate authentic hardware emulation without the complexity of modern emulation devices.

Buying Notes

The RG-FC520 is an affordable option for NES gaming on the go. However, it is limited to NES emulation only and lacks support for other systems. The small 600mAh battery may require frequent charging, and the plastic build feels lightweight. Ensure you purchase from a reputable seller to avoid counterfeit units.

Specifications
CPUMOS Technology 6502
GPURicoh 2C02
RAM2 KB
NameRG-FC520
BrandAnbernic
Weight200 g
Battery600 mAh
SpeakerMono
Grip TypeVertical
ProcessorRicoh 2A03
VibrationYes
Body ColorBlack, Gold, Red, Black
Dimensions83 mm x 98.5 mm x 17 mm
Screen PPI133.33
Price Range$0 - $50
Screen Size3.0 inches
Screen TypeTFT
Audio Output3.5mm headphone jack
ConnectivityUSB-C OTG
Launch Price$13
Release Date2020 / 08
Screen Ratio4:3
Video OutputAV Out
CPU Frequency1.79 MHz
Shell MaterialPlastic
Screen Resolution320 x 240
GPU Core Frequency5.37 MHz
Screen Refresh Rate60Hz
CPU Cores and Threads1 core 1 thread
Emulator Game SupportNES only

Full specs and updates on our site: https://www.oldman.dpdns.org/en/handheld/rg-fc520
