Anbernic RG-40XXH Review: A Compact Retro Handheld with 4-Inch IPS Display

Anbernic RG-40XXH Review: A Compact Retro Handheld with 4-Inch IPS Display

Overview

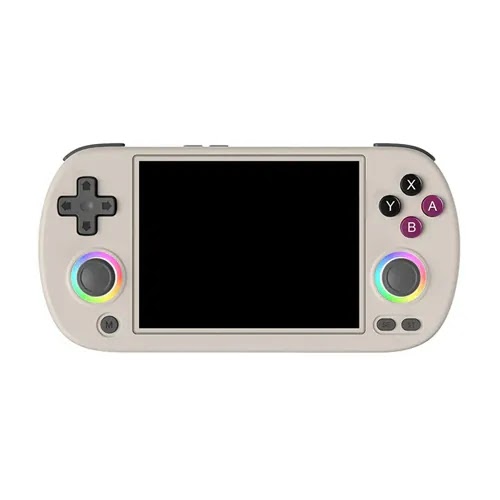

The Anbernic RG-40XXH is a horizontal handheld gaming console released in July 2024. It features a 4.0-inch IPS display with a 4:3 aspect ratio and 640x480 resolution, powered by the Allwinner H700 quad-core Cortex-A53 processor clocked at 1.5 GHz, paired with a Mali-G31 MP2 GPU and 1GB LPDDR4 RAM. The device runs on an open-source operating system and supports a wide variety of retro gaming platforms, including PSP, N64, PS1, Dreamcast, and many more.

Key Specs Highlights

  • Display: 4.0-inch IPS, 640x480, 4:3 ratio, 200 PPI
  • Processor: Allwinner H700 (Cortex-A53, 4 cores, 1.5 GHz)
  • GPU: Mali-G31 MP2 @ 650 MHz
  • RAM: 1 GB LPDDR4
  • Storage: Dual external SD card slots
  • Connectivity: WiFi 5, Bluetooth 4.2
  • Battery: 3200 mAh
  • Weight: 208 grams
  • Dimensions: 163 x 79 x 16 mm
  • Video Output: Mini HDMI
  • Audio: Dual stereo speakers, 3.5mm headphone jack
  • Vibration: Yes
  • Colors: White, Blue, Gray

Who It Is For

The RG-40XXH is ideal for retro gaming enthusiasts who want a portable device with a 4-inch screen and support for a broad range of classic consoles. It suits those who prefer an open-source system and value features like dual SD card slots, WiFi, and Bluetooth for multiplayer and connectivity. The device is also a good choice for gamers looking for a lightweight and compact handheld under 210 grams.

Buying Notes

The RG-40XXH was released in July 2024 with a launch price of ¥398 (approximately $55 USD). The price range is between ¥300 and ¥500. It is available in three colors: white, blue, and gray. The device uses a plastic shell and does not include active cooling. As an open-source handheld, it may require some setup for emulators and ROMs. Ensure you purchase from reputable sellers to avoid counterfeit products.

Specifications
CPUCortex-A53
GPUMali-G31 MP2
RAM1 GB LPDDR4
NameRG-40XXH
AliasRG40XXH
BrandAnbernic
Weight208 grams
Battery3200 mAh
CoolingNone
StorageDual external SD card slots
SpeakersDual stereo
Grip TypeHorizontal
ProcessorAllwinner H700
VibrationYes
Dimensions163 mm x 79 mm x 16 mm
Screen PPI200
Body ColorsWhite, Blue, Gray
Price Range¥300 - ¥500
Screen Size4.0 inches
Screen TypeIPS
Audio Output3.5mm headphone jack
ConnectivityWiFi 5, Bluetooth 4.2
Launch Price¥398
Release Date2024 / 07
Screen Ratio4:3
Video OutputMini HDMI
CPU Frequency1.5 GHz
Other SensorsNone
Shell MaterialPlastic
Operating SystemOpen source system
Screen Resolution640 x 480
GPU Core Frequency650 MHz
Screen Refresh Rate60Hz
CPU Cores and Threads4 cores 4 threads
Emulator Game SupportSupported game formats: Ported games (Teenage Mutant Ninja Turtles: Shredder's Revenge), PSP, DOS, NDS, N64, PS1, DC, ARCAD, GBA, GBC, GB, SFC, FC, MAME, MD, GG, PCE, NGPC, SMS, WSC and many other formats

Full specs and updates on our site: https://www.oldman.dpdns.org/en/handheld/rg-40xxh
